SKU: 25K1.5/300

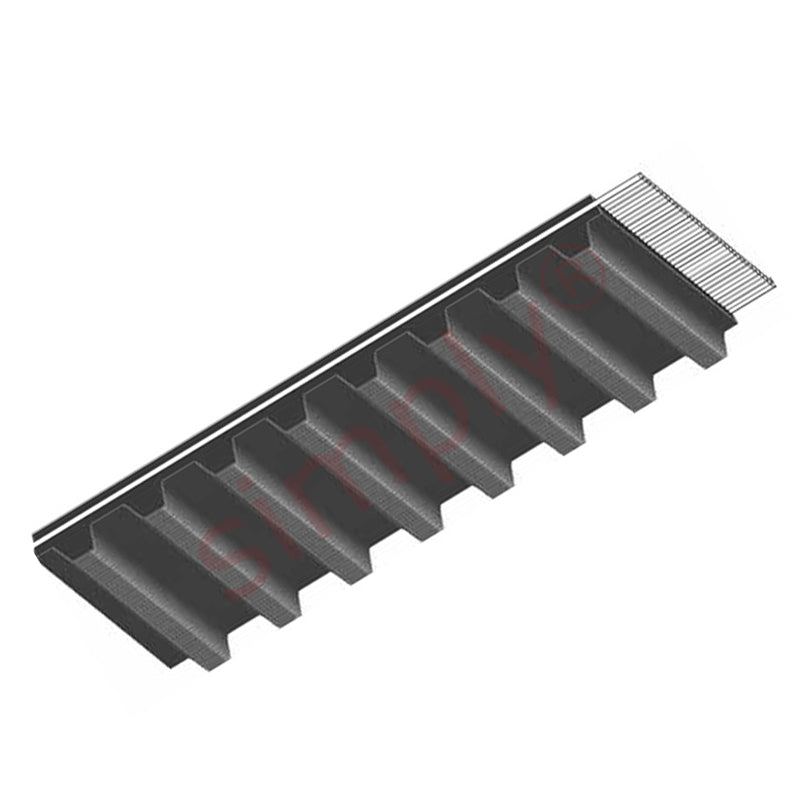

25K1.5/300 ContiTech Synchroflex Toothed Belt 25mm Wide 1.5mm Pitch 200 Teeth
In stock
Price Break
Description
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous transmission throughout the entire field of drive technology. They enable purpose-made solutions to be realized effectively and economically.
Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers.
Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance.
- Brand / Quality:
- ContiTech - High Quality
- Belt Width Approx:
- 25mm
- Belt Length Approx:
- 300mm
- Number of Teeth:
- 200
Technical
| No Teeth | 200 |
|---|---|
| Width | 25mm |
| Tooth Pitch t | 1.5mm |
| Belt Length | 300mm |
| Belt Thickness h<sub>s</sub> | 1.2mm |
| Tooth Height h<sub>t</sub> | 0.6mm |
| Flank Angle | 70 deg |
| Tension member loadings | 312 Fadm(N) |
| Belt weight | 0.025kg/m |
