SKU: 23226-E1-K-TVPB-C3-FAG

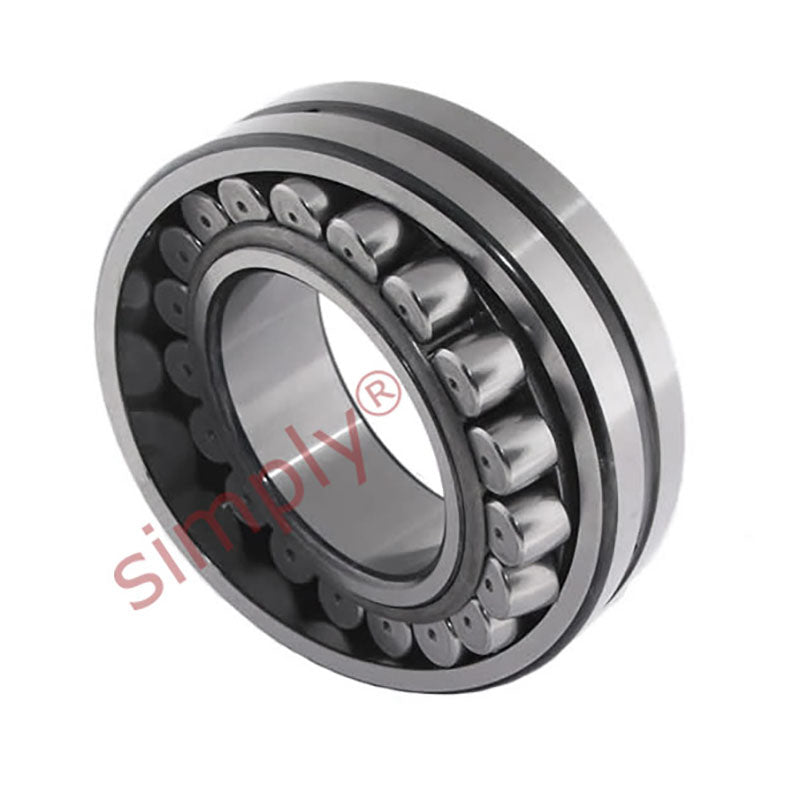

FAG 23226E1KTVPBC3 X-life Spherical Roller Bearing with Taper Bore with Glass Fibre Reinforced Polyamide Cage 130x230x80mm
FAG 23226E1KTVPBC3 X-life Spherical Roller Bearing with Taper Bore with Glass Fibre Reinforced Polyamide Cage 130x230x80mm
Regular price
Rs. 78,033.84
Regular price
Sale price
Rs. 78,033.84
Taxes included.
Equivalent to: 23226KC3
In stock
Price Break
10+
Rs. 69,450.12
19+
Rs. 65,548.43
29+
Rs. 64,768.09
39+
Rs. 63,987.75
49+
Rs. 63,207.41
74+
Rs. 62,427.07
99+
Rs. 58,525.38
199+
Rs. 57,745.04
249+
Rs. 56,964.70
499+
Rs. 56,184.36
999+
Rs. 54,623.69
Description
Description
|
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
Equivalent: 23226KC3
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 230mm
- Width:
- 80mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 130mm |
| D | 230mm |
| B | 80mm |
| r min. | 3mm |
| D1 | 199.3mm |
| d2 | 150mm |
| ds | 4.8mm |
| ns | 9.5mm |
| da min. | 144mm |
| Da max. | 216mm |
| ra max. | 2.5mm |
| --- | Loads, Speeds and Weights |
| Fatigue limit load | 89000 N |
| Limiting speed | 2600 rpm |
| Reference speed | 1740 rpm |
| Dynamic Load Rating | 910000 N |
| Static Load Rating | 1150000 N |
| Weight | 12.6kg |
| --- | Factors |
| e | 0.33 |
| Y1 | 2.07 |
| Y2 | 3.09 |
| Y0 | 2.03 |
| --- | Matching Adaptor Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H2326+sleeve>H2326</a> |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA2326+sleeve>HA2326</a> |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE2326+sleeve>HE2326</a> |
