SKU: 2316-EU

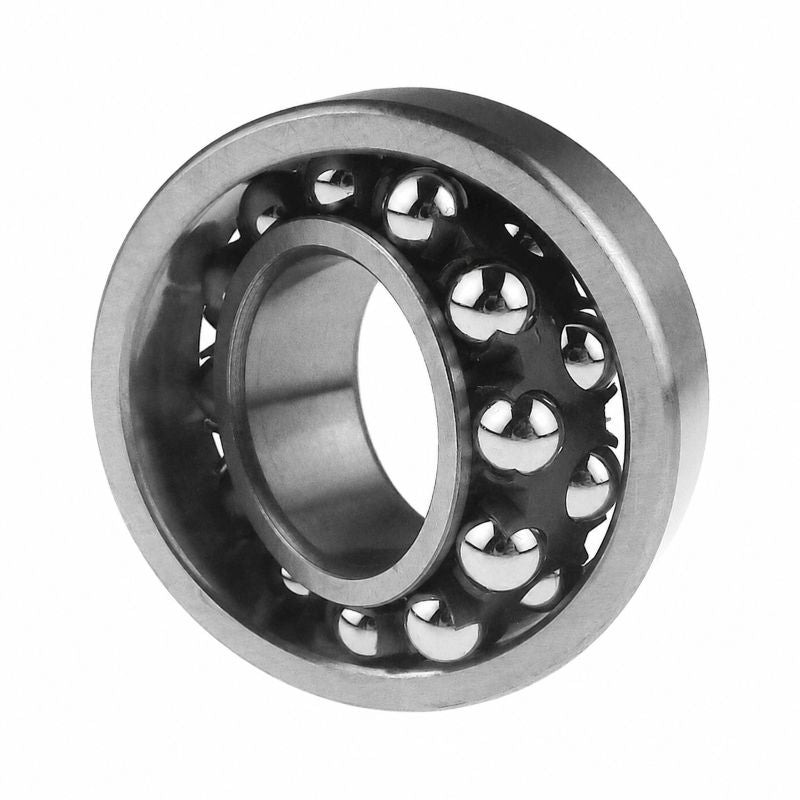

2316 Budget Open Self Aligning Ball Bearing with Cylindrical Bore 80x170x58mm
2316 Budget Open Self Aligning Ball Bearing with Cylindrical Bore 80x170x58mm
Regular price
Rs. 12,401.18
Regular price
Sale price
Rs. 12,401.18
Taxes included.
In stock
Price Break
10+
Rs. 11,037.05
19+
Rs. 10,416.99
29+
Rs. 10,292.98
39+
Rs. 10,168.97
49+
Rs. 10,044.96
74+
Rs. 9,920.94
99+
Rs. 9,300.89
199+
Rs. 9,176.87
249+
Rs. 9,052.86
499+
Rs. 8,928.85
999+
Rs. 8,680.83
Description
Description
|
Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 80mm |
| D | 170mm |
| B | 58mm |
| D1 | 148mm |
| d1d2 | 104mm |
| r1r2 | 2.1mm |
| da min | 92mm |
| Da max | 158mm |
| ra max | 2mm |
| --- | Calculation Data |
| C | 135kN |
| Co | 4925.5 |
| Pu | 2.24kN |
| ref | 7000rpm |
| limit | 5300rpm |
| e | 0.37 |
| Y1 | 1.7 |
| Y2 | 2.6 |
| Y0 | 1.8 |
| --- | Weights |
| kg | 6.1 |
