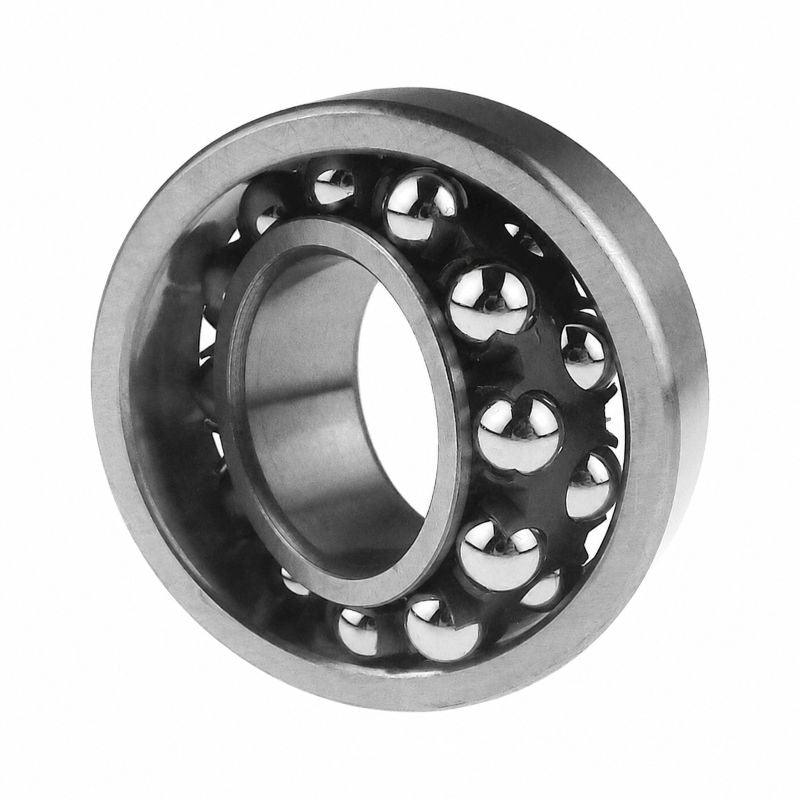

• 2315K Budget Open Self Aligning Ball Bearing with Taper Bore 75x160x55mm
1 1

SKU: 2315K-EU

2315K Budget Open Self Aligning Ball Bearing with Taper Bore 75x160x55mm

2315K Budget Open Self Aligning Ball Bearing with Taper Bore 75x160x55mm
Rs. 21,160.92 ex VAT
Rs. 21,160.92 ex VAT
Sale Sold out

Equivalent to: 2315EK

In stock

Price Break
10+ Rs. 18,833.22
19+ Rs. 17,775.17
29+ Rs. 17,563.56
39+ Rs. 17,351.95
49+ Rs. 17,140.35
74+ Rs. 16,928.74
99+ Rs. 15,870.69
199+ Rs. 15,659.08
249+ Rs. 15,447.47
499+ Rs. 15,235.86
999+ Rs. 14,812.64
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds
Benefits: Tolerates misalignment, cool running, self centering


Equivalent: 2315EK
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
75mm
Outside Diameter:
160mm
Width:
55mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Dimensions
d 75mm
D 160mm
B 55mm
D1 139mm
d1d2 97.8mm
r1r2 2.1mm
da min 87mm
Da max 148mm
ra max 2mm
--- Calculation Data
C 124kN
Co 4330
Pu 2.04kN
ref 7500rpm
limit 5600rpm
e 0.37
Y1 1.7
Y2 2.6
Y0 1.8
--- Weights
kg 4.7
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H2315+sleeve>H2315</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA2315+sleeve>HA2315</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE2315+sleeve>HE2315</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS2315+sleeve>HS2315</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX2315G+sleeve>AHX2315G</a>
