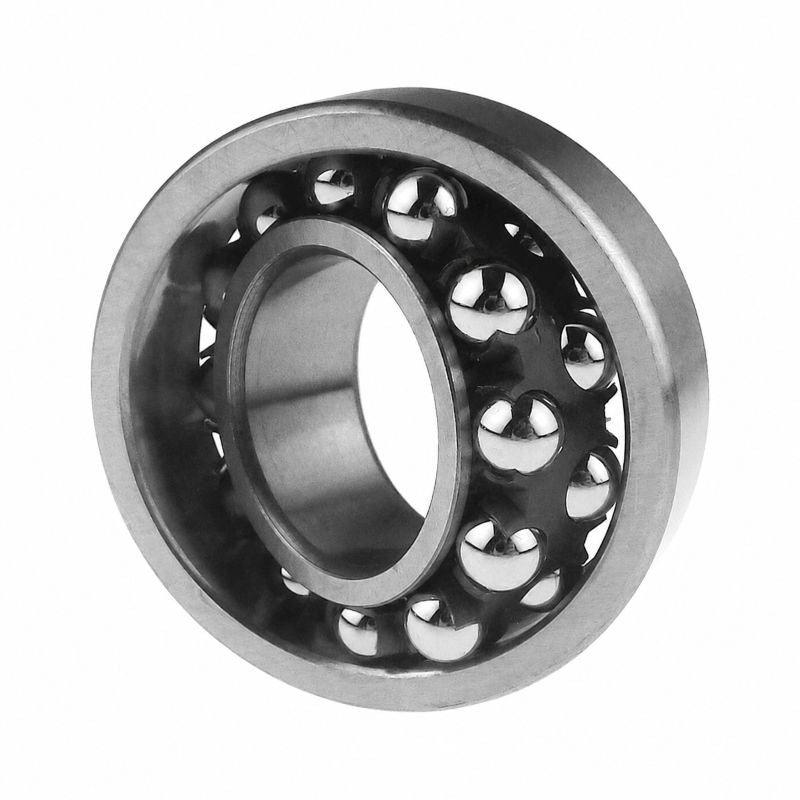

• 2311K Budget Open Self Aligning Ball Bearing with Taper Bore 55x120x43mm
1 1

SKU: 2311K-EU

2311K Budget Open Self Aligning Ball Bearing with Taper Bore 55x120x43mm

2311K Budget Open Self Aligning Ball Bearing with Taper Bore 55x120x43mm
Rs. 9,048.37
Rs. 9,048.37
Sale Sold out
Taxes included.

Equivalent to: 2311EK

In stock

Price Break
10+ Rs. 8,053.05
19+ Rs. 7,600.63
29+ Rs. 7,510.15
39+ Rs. 7,419.66
49+ Rs. 7,329.18
74+ Rs. 7,238.70
99+ Rs. 6,786.28
199+ Rs. 6,695.79
249+ Rs. 6,605.31
499+ Rs. 6,514.83
999+ Rs. 6,333.86
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds
Benefits: Tolerates misalignment, cool running, self centering


Equivalent: 2311EK
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
55mm
Outside Diameter:
120mm
Width:
43mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Dimensions
d 55mm
D 120mm
B 43mm
D1 103mm
d1d2 72mm
r1r2 2mm
da min 66mm
Da max 109mm
ra max 2mm
--- Calculation Data
C 76.1kN
Co 2418
Pu 1.25kN
ref 11000rpm
limit 7500rpm
e 0.4
Y1 1.6
Y2 2.4
Y0 1.6
--- Weights
kg 2.1
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H2311+sleeve>H2311</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA2311+sleeve>HA2311</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE2311B+sleeve>HE2311B</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX2311+sleeve>AHX2311</a>
