• 2310K Budget Open Self Aligning Ball Bearing with Taper Bore 50x110x40mm
1 1

SKU: 2310K-EU

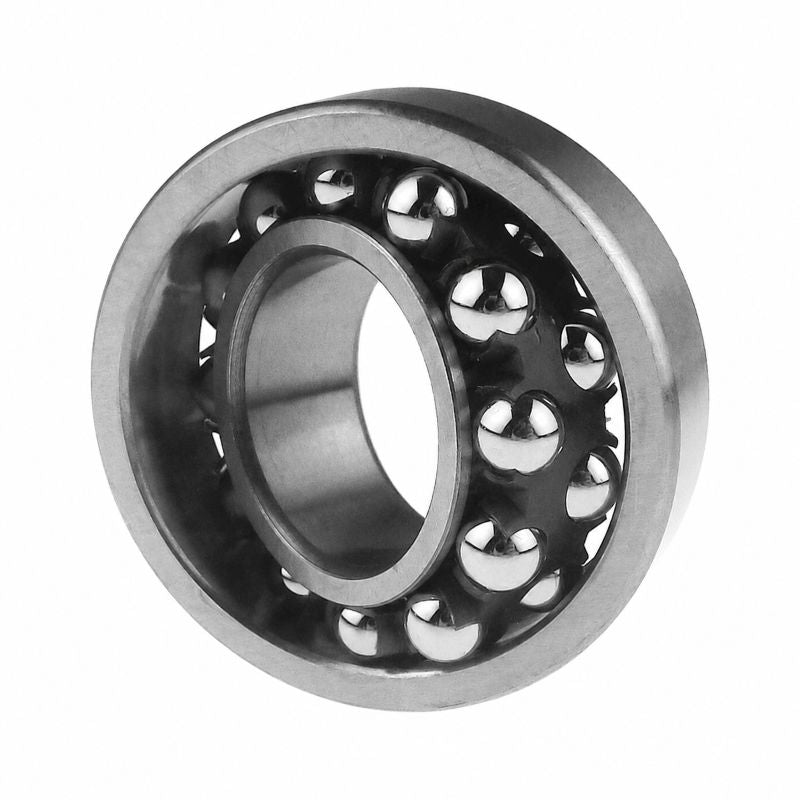

2310K Budget Open Self Aligning Ball Bearing with Taper Bore 50x110x40mm

2310K Budget Open Self Aligning Ball Bearing with Taper Bore 50x110x40mm
Rs. 7,358.52
Rs. 7,358.52
Sale Sold out
Taxes included.

Equivalent to: 2310EK

In stock

Price Break
10+ Rs. 6,549.08
19+ Rs. 6,181.16
29+ Rs. 6,107.57
39+ Rs. 6,033.99
49+ Rs. 5,960.40
74+ Rs. 5,886.82
99+ Rs. 5,518.89
199+ Rs. 5,445.30
249+ Rs. 5,371.72
499+ Rs. 5,298.13
999+ Rs. 5,150.96
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds
Benefits: Tolerates misalignment, cool running, self centering


Equivalent: 2310EK
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Outside Diameter:
110mm
Width:
40mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Dimensions
d 50mm
D 110mm
B 40mm
D1 94.4mm
d1d2 65.8mm
r1r2 2mm
da min 61mm
Da max 99mm
ra max 2mm
--- Calculation Data
C 63.7kN
Co 2014
Pu 1.04kN
ref 14000rpm
limit 9500rpm
e 0.43
Y1 1.5
Y2 2.3
Y0 1.6
--- Weights
kg 1.65
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H2310+sleeve>H2310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS2310+sleeve>HS2310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA2310+sleeve>HA2310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE2310+sleeve>HE2310</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX2310+sleeve>AHX2310</a>
