SKU: 22309-E1-K-C3+H2309-FAG

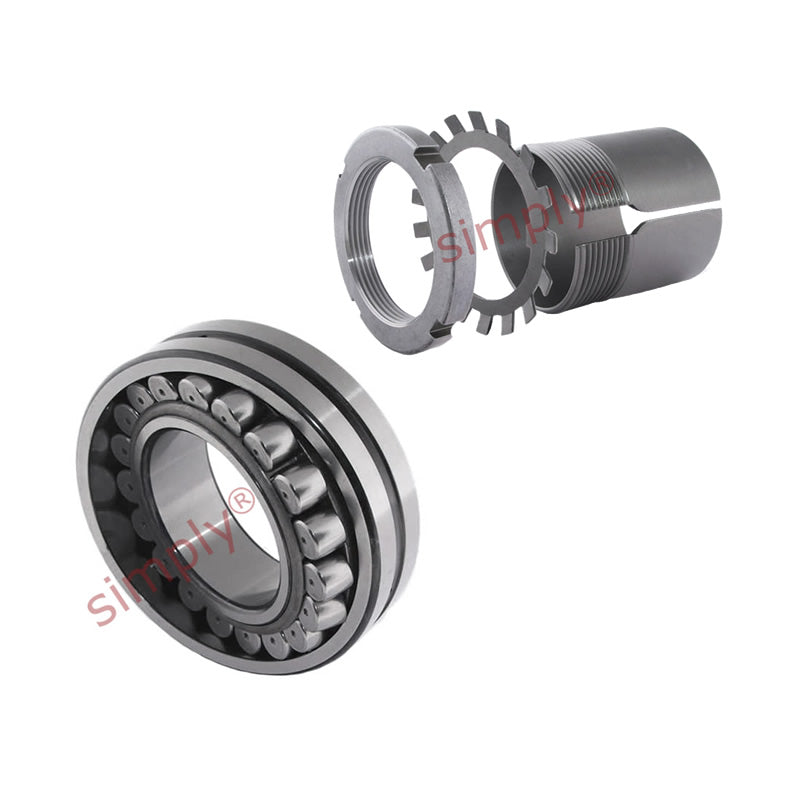

FAG 22309E1KC3 X-life Spherical Roller Bearing with H2309 Adapter Sleeve 40x100x36mm
FAG 22309E1KC3 X-life Spherical Roller Bearing with H2309 Adapter Sleeve 40x100x36mm
Regular price
Rs. 12,963.18
Regular price
Sale price
Rs. 12,963.18
Taxes included.
In stock
Description
Description
|
Spherical Roller Bearing with Adapter Sleeve: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. This bearing is supplied with an adapter sleeve. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 100mm
- Width:
- 36mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d1H | 40mm |
|---|---|
| d | 45mm |
| D | 100mm |
| B | 36mm |
| r min | 1.5mm |
| D1 | 84.7mm |
| d2 | 58.9mm |
| ds | 3.2mm |
| ns | 6.5mm |
| Dm | 65mm |
| l | 50mm |
| c | 12mm |
| da max | 58mm |
| Da max | 91mm |
| db min | 50mm |
| Ba min | 5mm |
| ra max | 1.5mm |
| Dynamic load Cr | 187000 N |
| Static load C0r | 183000 N |
| e | 0.36 |
| Y1 | 1.9 |
| Y2 | 2.83 |
| Y0 | 1.86 |
| Fatigue load limit Cur | 16100 N |
| Limiting speed nG | 6700 rpm |
| Reference speed nB | 5000 rpm |
| Bearing weight | 1.36 kg |
| Adapter sleeve weight | 0.283 kg |
