SKU: 2209.K.TV.C3.MB

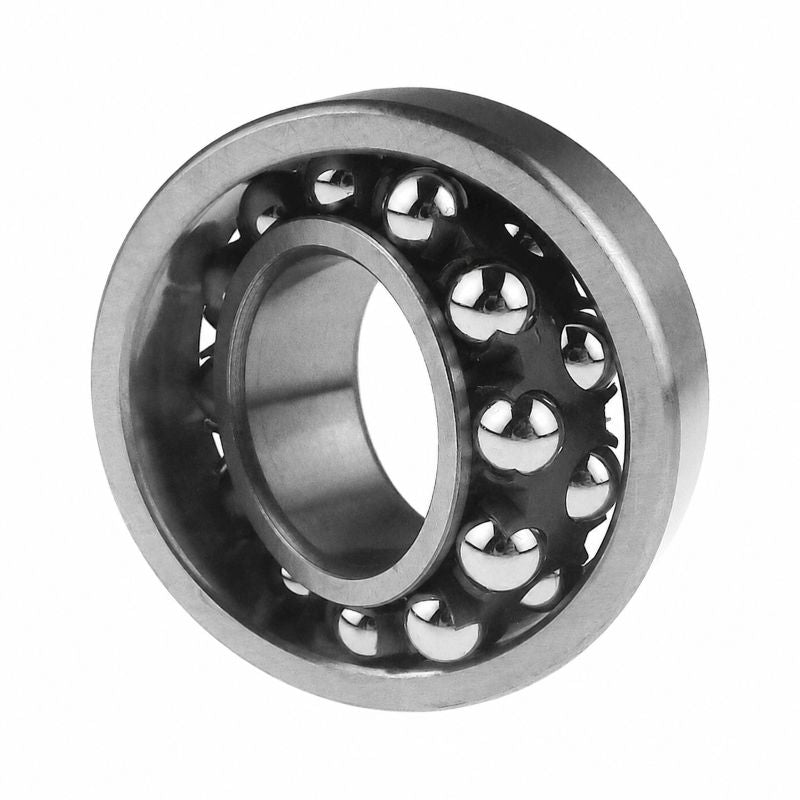

2209KTVC3 Open Self Aligning Ball Bearing with Taper Bore 45x85x23mm
2209KTVC3 Open Self Aligning Ball Bearing with Taper Bore 45x85x23mm
Regular price
Rs. 4,577.99
ex VAT
Regular price
Sale price
Rs. 4,577.99
ex VAT
Equivalent to: 2209EKTVC3 2209KC3
In stock
Price Break
10+
Rs. 4,074.41
19+
Rs. 3,845.51
29+
Rs. 3,799.73
39+
Rs. 3,753.95
49+
Rs. 3,708.17
74+
Rs. 3,662.39
99+
Rs. 3,433.49
199+
Rs. 3,387.71
249+
Rs. 3,341.93
499+
Rs. 3,296.15
999+
Rs. 3,204.59
Couldn't load pickup availability
Description
Description
|
Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds |
Equivalent: 2209EKTVC3 2209KC3
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 45mm |
| D | 85mm |
| B | 23mm |
| Weight | 0.53kg |
| --- | Matching Adaptor Sleeves |
| Adaptor Sleeve | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H309+sleeve>H309</a> |
| Adaptor Sleeve | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA309+sleeve>HA309</a> |
| Adaptor Sleeve | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE309+sleeve>HE309</a> |
| --- | Matching Withdrawal Sleeves |
| Withdrawal Sleeve | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AH309+sleeve>AH309</a> |
