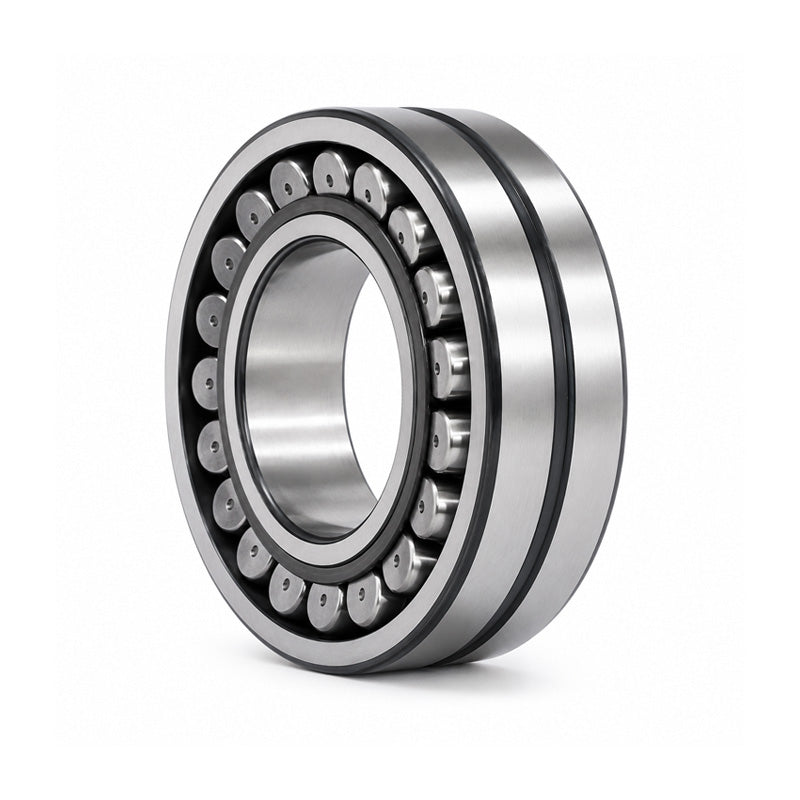

• FAG 21320E1KTVPB X-life Spherical Roller Bearing with Glass Fibre Reinforced Polyamide Cage with AHX320 Withdrawal Sleeve 95x215x47mm
1 1

SKU: 21320-E1-K-TVPBu-FAG

FAG 21320E1KTVPB X-life Spherical Roller Bearing with Glass Fibre Reinforced Polyamide Cage with AHX320 Withdrawal Sleeve 95x215x47mm

FAG 21320E1KTVPB X-life Spherical Roller Bearing with Glass Fibre Reinforced Polyamide Cage with AHX320 Withdrawal Sleeve 95x215x47mm
Rs. 54,584.64
Rs. 54,584.64
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 48,580.33
19+ Rs. 45,851.10
29+ Rs. 45,305.25
39+ Rs. 44,759.40
49+ Rs. 44,213.56
74+ Rs. 43,667.71
99+ Rs. 40,938.48
199+ Rs. 40,392.63
249+ Rs. 39,846.79
499+ Rs. 39,300.94
999+ Rs. 38,209.25
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
FAG - High Quality
Inside Diameter:
95mm
Outside Diameter:
215mm
Width:
47mm
Seals / Shields:
None
Clearance:
* Standard

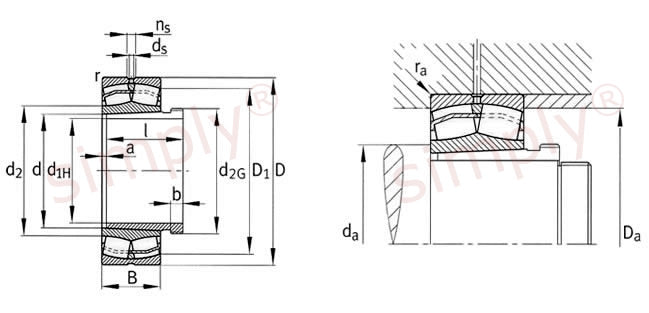

Technical
d1H 95mm
d 100mm
D 215mm
B 47mm
r min 3mm
D1 182mm
d2 132mm
ds 4.8mm
ns 9.5mm
a 4mm
b 10mm
Thread d2G M110X2
l 59mm
da min 114mm
Da max 201mm
ra max 2.5mm
Dynamic load Cr 495000 N
Static load C0r 530000 N
e 0.22
Y1 3.14
Y2 4.67
Y0 3.07
Fatigue load limit Cur 61000 N
Limiting speed nG 3600 rpm
Reference speed nB 3050 rpm
Bearing weight 8.08 kg
Withdrawal sleeve weight 0.595 kg
