SKU: 21319-E1-K-TVPB-FAG

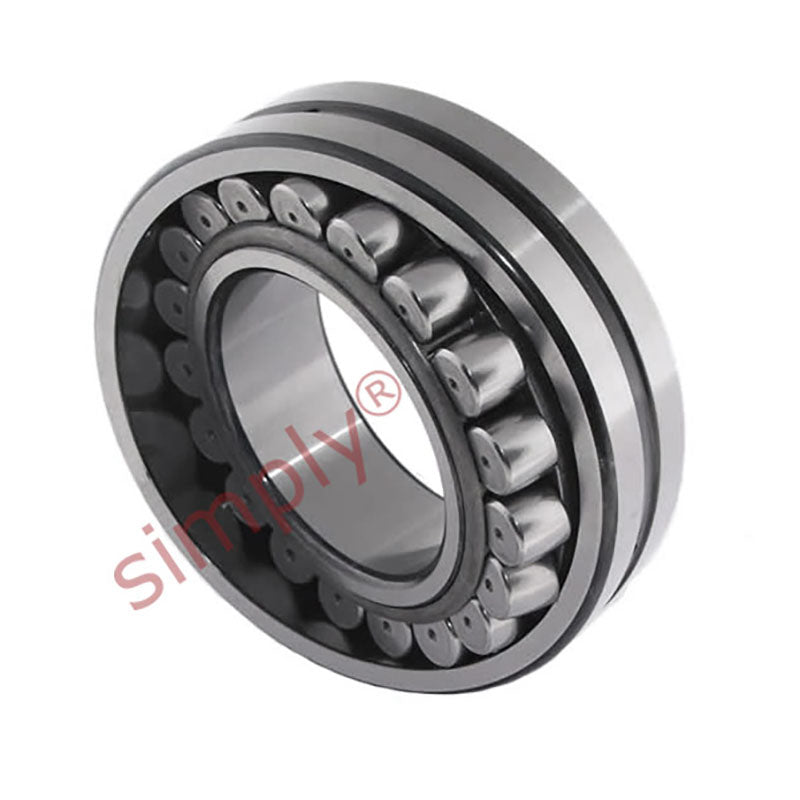

FAG 21319E1KTVPB X-life Spherical Roller Bearing with Taper Bore with Glass Fibre Reinforced Polyamide Cage 95x200x45mm
FAG 21319E1KTVPB X-life Spherical Roller Bearing with Taper Bore with Glass Fibre Reinforced Polyamide Cage 95x200x45mm
Regular price
Rs. 40,146.69
Regular price
Sale price
Rs. 40,146.69
Taxes included.
Equivalent to: 21319K
In stock
Price Break
10+
Rs. 35,730.55
19+
Rs. 33,723.22
29+
Rs. 33,321.75
39+
Rs. 32,920.29
49+
Rs. 32,518.82
74+
Rs. 32,117.35
99+
Rs. 30,110.02
199+
Rs. 29,708.55
249+
Rs. 29,307.08
499+
Rs. 28,905.62
999+
Rs. 28,102.68
Description
Description
|
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
Equivalent: 21319K
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 200mm
- Width:
- 45mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 95mm |
| D | 200mm |
| B | 45mm |
| r min. | 3mm |
| D1 | 169.4mm |
| d2 | 124.3mm |
| ds | 4.8mm |
| ns | 9.5mm |
| da min. | 109mm |
| Da max. | 186mm |
| ra max. | 2.5mm |
| --- | Loads, Speeds and Weights |
| Fatigue limit load | 47500 N |
| Limiting speed | 4000 rpm |
| Reference speed | 3200 rpm |
| Dynamic Load Rating | 430000 N |
| Static Load Rating | 460000 N |
| Weight | 6.53kg |
| --- | Factors |
| e | 0.22 |
| Y1 | 3.04 |
| Y2 | 4.53 |
| Y0 | 2.97 |
| --- | Matching Adaptor Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H319+sleeve>H319</a> |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE319+sleeve>HE319</a> |
| --- | Matching Withdrawal Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX319+sleeve>AHX319</a> |
