SKU: 21312-E1-C3-FAG

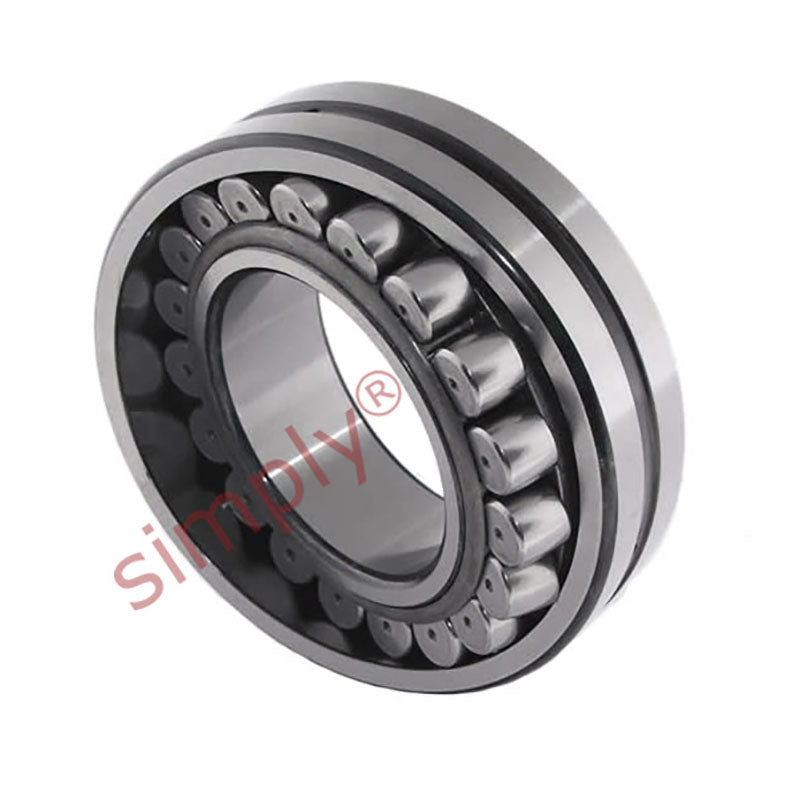

FAG 21312E1C3 X-life Spherical Roller Bearing with Cylindrical Bore 60x130x31mm
FAG 21312E1C3 X-life Spherical Roller Bearing with Cylindrical Bore 60x130x31mm
Regular price
Rs. 15,337.93
Regular price
Sale price
Rs. 15,337.93
Taxes included.
In stock
Price Break
10+
Rs. 13,650.76
19+
Rs. 12,883.86
29+
Rs. 12,730.48
39+
Rs. 12,577.10
49+
Rs. 12,423.72
74+
Rs. 12,270.34
99+
Rs. 11,503.45
199+
Rs. 11,350.07
249+
Rs. 11,196.69
499+
Rs. 11,043.31
999+
Rs. 10,736.55
Description
Description
|
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 60mm |
| D | 130mm |
| B | 31mm |
| r min. | 2.1mm |
| D1 | 112.5mm |
| d2 | 84.4mm |
| ds | 3.2mm |
| ns | 6.5mm |
| da min. | 72mm |
| Da max. | 118mm |
| ra max. | 2.1mm |
| --- | Loads, Speeds and Weights |
| Fatigue limit load | 28000 N |
| Limiting speed | 6300 rpm |
| Reference speed | 4100 rpm |
| Dynamic Load Rating | 211000 N |
| Static Load Rating | 226000 N |
| Weight | 1.78kg |
| --- | Factors |
| e | 0.23 |
| Y1 | 2.95 |
| Y2 | 4.4 |
| Y0 | 2.89 |
