SKU: 20B-3-SYNERGY-10FT-RENOLD

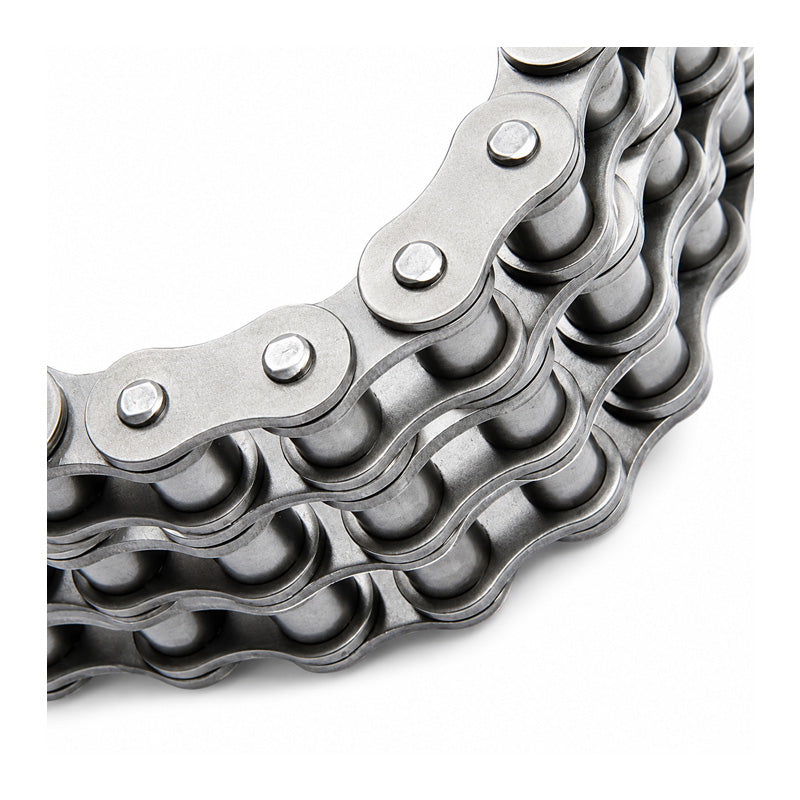

Renold Synergy 20B-3 BS Triplex Roller Chain 1-1/4 inch Pitch - 10 Feet Length
Renold Synergy 20B-3 BS Triplex Roller Chain 1-1/4 inch Pitch - 10 Feet Length
Regular price
Rs. 403,152.68
ex VAT
Regular price
Sale price
Rs. 403,152.68
ex VAT
Equivalent to: GY20B3
In stock
Price Break
10+
Rs. 358,805.89
19+
Rs. 338,648.25
29+
Rs. 334,616.72
39+
Rs. 330,585.20
49+
Rs. 326,553.67
74+
Rs. 322,522.14
99+
Rs. 302,364.51
199+
Rs. 298,332.98
249+
Rs. 294,301.46
499+
Rs. 290,269.93
999+
Rs. 282,206.88
Couldn't load pickup availability
Description
Description
Renold Synergy High Performance Chain: Renold Synergy chain will last three times longer in normal working conditions than your current non-Renold chain or your next chain is free. It's that simple. If the working life of your non Renold Chain is unsatisfactory, try Renold Synergy®. You will see productivity increase, downtime cut and costs saved. Renold are so confident that their chain will significantly outlast any other non-Renold brand chain that we will give you a replacement chain free*. There has never been a better time to specify Renold Synergy® - the only high performance transmission chain.
Equivalent: GY20B3
* Subject to site visit from a Renold Service Engineer
Renold Synergy® has transformed the productivity and efficiency of all these industrial applications and more.
Equivalent: GY20B3
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 19.56mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 26.42mm |
| Plate Width Inner max (E) | 4.62mm |
| Plate Width Outer max (F) | 3.61mm |
| Pin Diameter max (G) | 10.19mm |
| Pin Length max (H1) | 113.2mm |
| Connecting Link Extension max (J) | 2.7mm |
| ISO606 Tensile Strength min | 250000 N |
| Weight | 11.65kg/m |
