SKU: 20B-3-BB-NO26-RENOLD

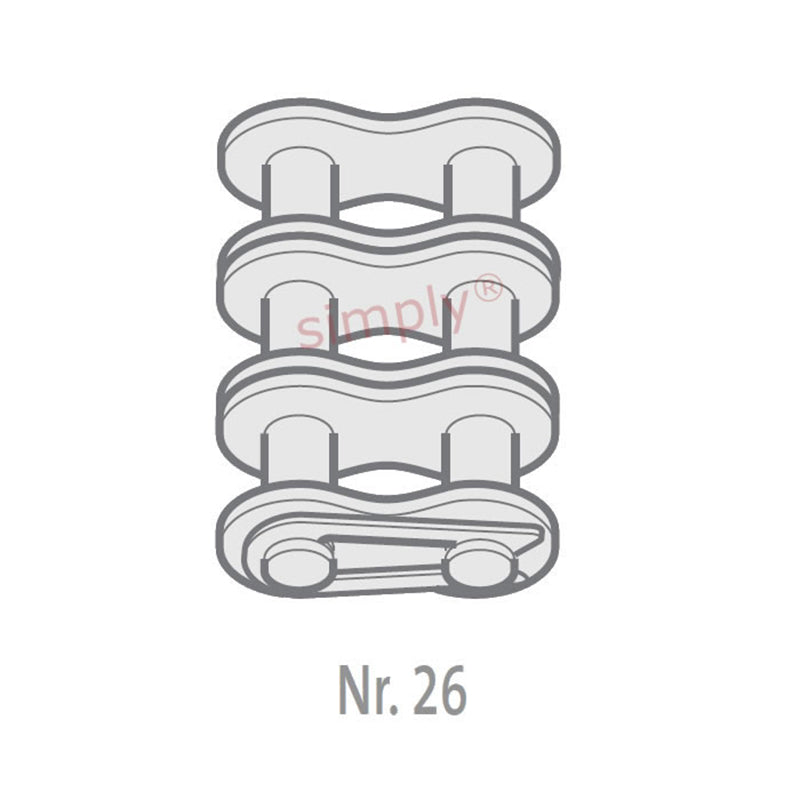

Renold Blue Box 20B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
Renold Blue Box 20B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1-1/4 inch Pitch
Regular price
Rs. 7,055.24
ex VAT
Regular price
Sale price
Rs. 7,055.24
ex VAT
In stock
Price Break
10+
Rs. 6,279.16
19+
Rs. 5,926.40
29+
Rs. 5,855.85
39+
Rs. 5,785.30
49+
Rs. 5,714.74
74+
Rs. 5,644.19
99+
Rs. 5,291.43
199+
Rs. 5,220.88
249+
Rs. 5,150.33
499+
Rs. 5,079.77
999+
Rs. 4,938.67
Couldn't load pickup availability
Description
Description
| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 19.56mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 26.42mm |
| Plate Width Inner max (E) | 4.62mm |
| Plate Width Outer max (F) | 3.61mm |
| Pin Diameter max (G) | 10.19mm |
| Pin Length max (H2) | 113.2mm |
| Connecting Link Extension max (J) | 2.7mm |
| Transverse Pitch nom (K) | 36.45mm |
| ISO606 Tensile Strength min | 250000 N |
| Weight | 0.08kg/m |
