SKU: 203KR2-PEER
PEER 203KR2 Seeder Bearing 0.625x1.5748x0.551 inch
PEER 203KR2 Seeder Bearing 0.625x1.5748x0.551 inch
Regular price
Rs. 854.82
ex VAT
Regular price
Sale price
Rs. 854.82
ex VAT
Equivalent to: 203KR2
In stock
Price Break
5+
Rs. 846.27
10+
Rs. 812.08
20+
Rs. 794.98
50+
Rs. 769.34
100+
Rs. 752.24
500+
Rs. 709.50
1000+
Rs. 598.37
Couldn't load pickup availability
Description
Description
Seal Type: R, RST
Typical Application: Lawn and Garden Applications
Typical Environment: Less Contaminative Environment
Contamination Exclusion: Mild/Moderate
Speed Limit: Basic BRG. Size < 205: 3500 RPM, Basic BRG. Size > 205: 2000 RPM
Equivalent: 203KR2
- Brand / Quality:
- PEER - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 39.99mm = 1.574 inch
- Width:
- 13.99mm = 0.551 inch
Technical
Technical

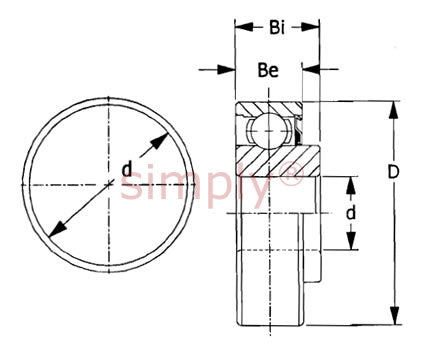

| d | 0.625 inch = 15.88mm (Tolerance +.0000 to minus 0.0003) |
|---|---|
| D | 1.5748 inch = 39.99992mm (Tolerance +.0000 to minus 0.0005) |
| Bi | 0.551 inch = 13.9954mm (Tolerance +.0000 to minus 0.005) |
| Be | 0.4724 inch = 11.99896mm (Tolerance +.0000 to minus 0.005) |
| Seal/Shield Type | R Seal |
| Load Ratings Dynamic | 2160 lbf |
| Load Ratings Static | 889 lbf |
