SKU: 20222-K-MB-C3+H222-MB

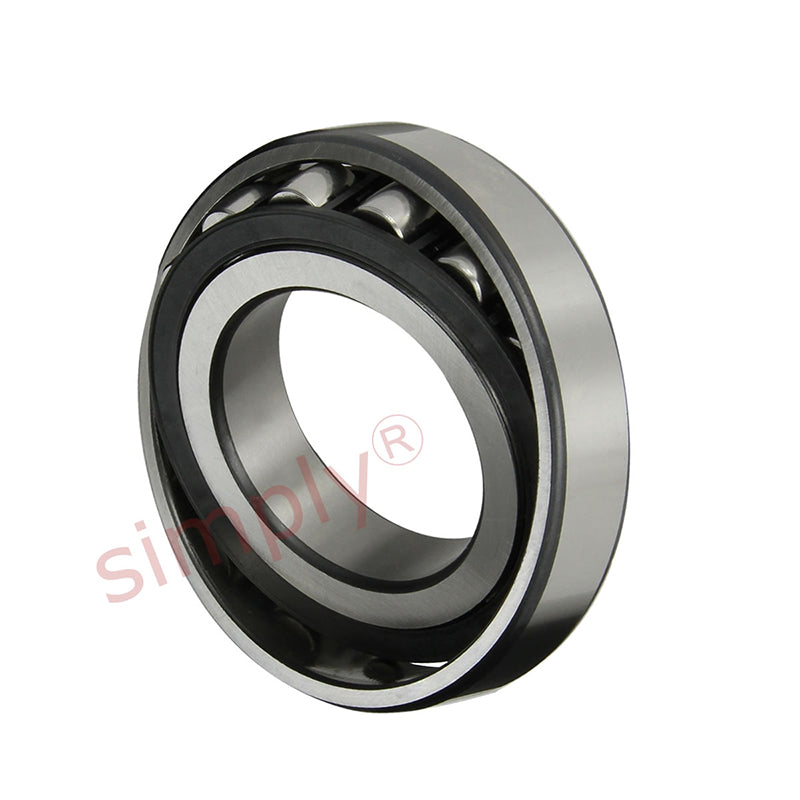

20222KMBC3 Barrel Roller Bearing with Taper Bore and H222 Adaptor Sleeve 100x200x38mm - Allow 2-3 Days
20222KMBC3 Barrel Roller Bearing with Taper Bore and H222 Adaptor Sleeve 100x200x38mm - Allow 2-3 Days
Regular price
Rs. 85,170.89
Regular price
Sale price
Rs. 85,170.89
Taxes included.
In stock
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid brass cage. This bearing is also available with an adaptor sleeve for locating purposes. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C. to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 200mm
- Width:
- 38mm
- Clearance:
- C3
Technical
Technical
| d1H | 100mm |
|---|---|
| D | 200mm |
| B | 38mm |
| Ba min | 7mm |
| c | 21mm |
| D1 | 178.6mm |
| Da max | 188mm |
| Dm | 145mm |
| d | 110mm |
| da max | 132mm |
| db min | 116mm |
| l | 63mm |
| ra max | 2.1mm |
| r min | 2.1mm |
| Adaptor sleeve | H222 |
| Dynamic radial load Cr | 285000 N |
| Static radial load C0r | 375000 N |
| Limiting speed nG | 1700 rpm |
| Fatigue limit radial load Cur | 34500 N |
| Weight | 7.4 kg |
