SKU: 202-KRR-INA

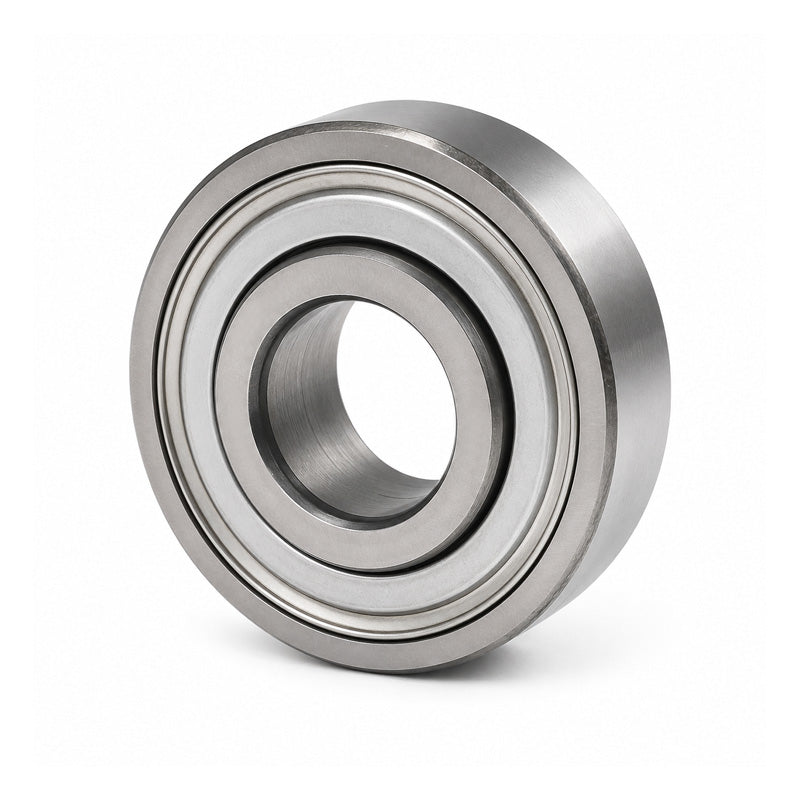

INA 202KRR Metric Parallel Outer Deep Groove Ball Bearing with R Seals 15x35x14.4mm
INA 202KRR Metric Parallel Outer Deep Groove Ball Bearing with R Seals 15x35x14.4mm
Regular price
Rs. 1,840.91
Regular price
Sale price
Rs. 1,840.91
Taxes included.
In stock
Price Break
10+
Rs. 1,638.41
19+
Rs. 1,546.36
29+
Rs. 1,527.96
39+
Rs. 1,509.55
49+
Rs. 1,491.14
74+
Rs. 1,472.73
99+
Rs. 1,380.68
199+
Rs. 1,362.27
249+
Rs. 1,343.86
499+
Rs. 1,325.46
999+
Rs. 1,288.64
Description
Description
|
INA 2..-KRR Series Inserts: Bearing insert with parallel outer race and R seals. The inner ring is extended on both sides and is located on the shaft using a location fit. Due to the extended inner ring, additional axial spacer rings are not required. The concentric seat allows speeds equivalent to those of standard ball bearings, while the load can be either constant or alternating. The sheet steel washers extended outwards and angled downwards form a large grease reservoir. Operating temperature range: -20 deg C to +120 deg C. Benefits: Smooth running. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 14.4mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 14.4mm |
| C | 11mm |
| C2 | 11mm |
| D1 | 28.8mm |
| d1 | 21.5mm |
| r min | 0.6mm |
| Limiting speed nG Fett | 14600 rpm |
| Dynamic load Cr | 7600 N |
| Static load C0r | 3700 N |
| Weight | 0.05 kg |
