SKU: 1MMS-JUB

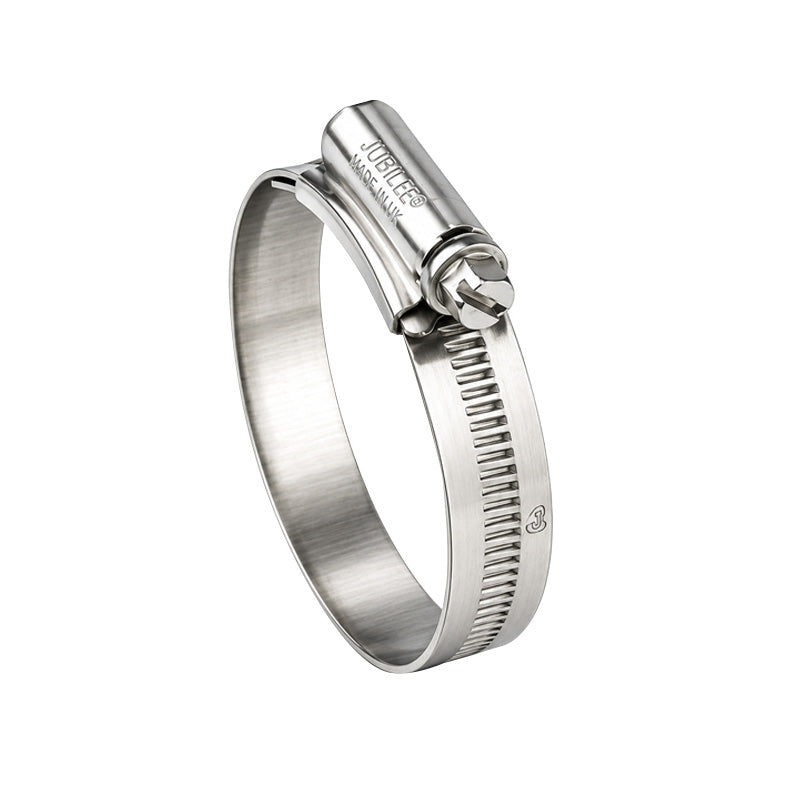

1MMS Zinc Plated Steel Original Jubilee Clip Adjustment Range 32mm-45mm Band Width 13mm
1MMS Zinc Plated Steel Original Jubilee Clip Adjustment Range 32mm-45mm Band Width 13mm
Regular price
Rs. 273.80
ex VAT
Regular price
Sale price
Rs. 273.80
ex VAT
Low stock
Price Break
5+
Rs. 191.66
10+
Rs. 164.28
20+
Rs. 150.59
50+
Rs. 136.90
100+
Rs. 109.52
500+
Rs. 95.83
1000+
Rs. 82.14
Couldn't load pickup availability
Description
Description
Zinc Plated Steel Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery industries.
Benefits: Rolled edges provide protection to softer hoses.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 32mm
- Max Adjustment Range:
- 45mm
Technical
Technical
| BS No. | 45 |
|---|---|
| Adjustment Range | 32mm - 45mm |
| Adjustment Range | 1-1/4 - 1-3/4 inch |
| Band Width (+/- 0.1) | 13mm |
| Band Thickness (+/- 0.1) | 0.914mm |
| Recommended Torque | 5.1Nm |
| Maximum Torque | 6.8Nm |
| Maximum Pressure | 102 Psi |
