SKU: 1ASS-JUB

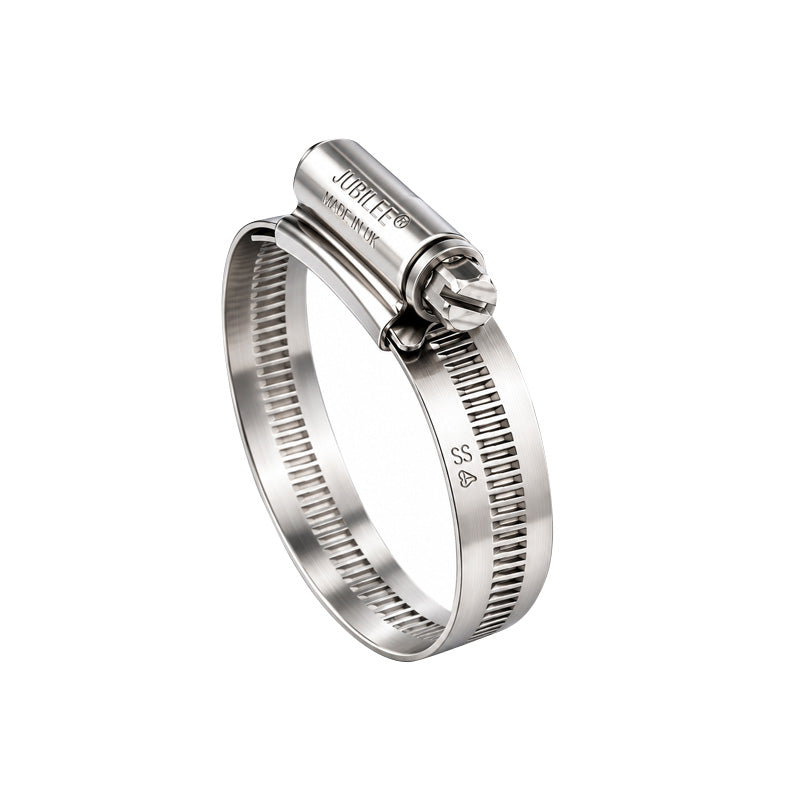

1ASS 304 Stainless Steel Original Jubilee Clip Adjustment Range 22mm-30mm Band Width 13mm
1ASS 304 Stainless Steel Original Jubilee Clip Adjustment Range 22mm-30mm Band Width 13mm
Regular price
Rs. 571.80
ex VAT
Regular price
Sale price
Rs. 571.80
ex VAT
Low stock
Price Break
5+
Rs. 400.26
10+
Rs. 343.08
20+
Rs. 314.49
50+
Rs. 285.90
100+
Rs. 228.72
500+
Rs. 200.13
1000+
Rs. 171.54
Couldn't load pickup availability
Description
Description
304 Stainless Steel Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 22mm
- Max Adjustment Range:
- 30mm
Technical
Technical
| BS No. | 30 |
|---|---|
| Adjustment Range | 22mm - 30mm |
| Adjustment Range | 7/8 - 1-1/8 inch |
| Band Width (+/- 0.1) | 13mm |
| Band Thickness (+/- 0.1) | 0.914mm |
| Recommended Torque | 5.1Nm |
| Maximum Torque | 6.8Nm |
| Maximum Pressure | 203 Psi |
