SKU: 19145D/19268-TIM

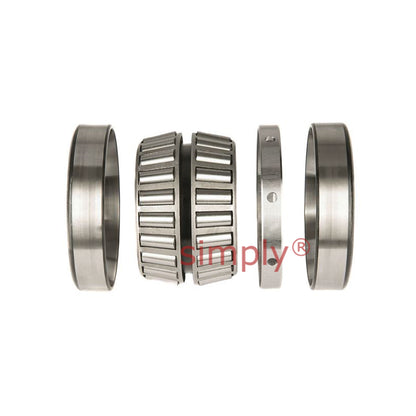

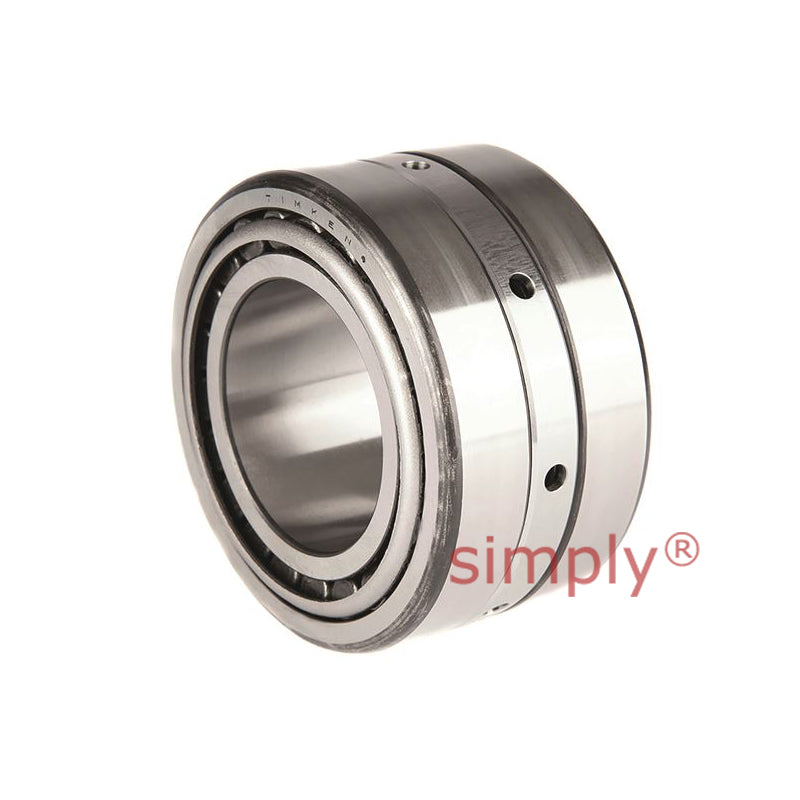

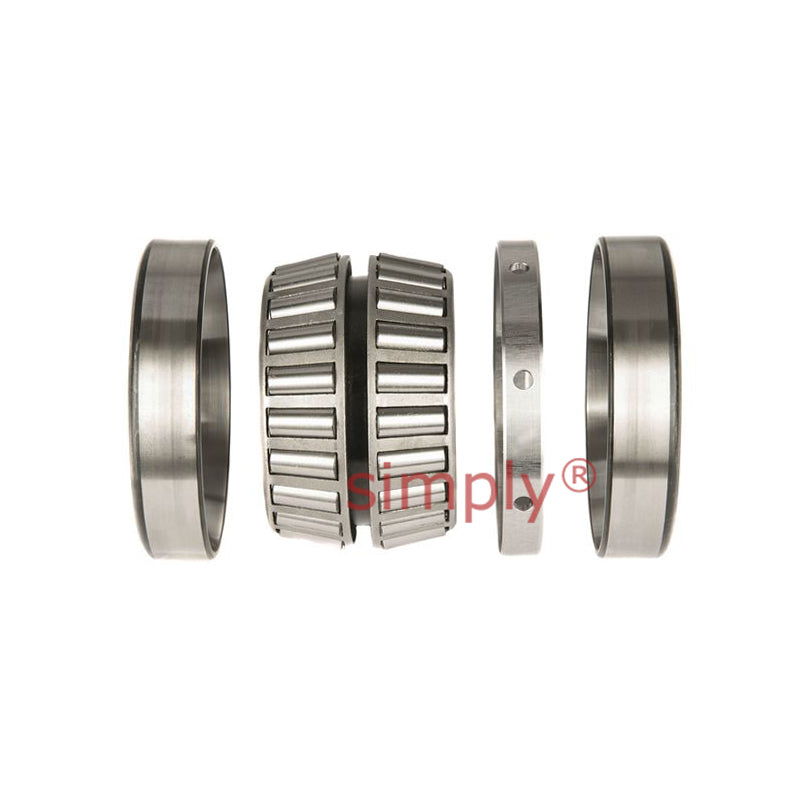

Timken 19145D/19268 TDI Double Inner Race Taper Roller Bearing 1.4375x2.6875x1.4492x1.5 inch
Timken 19145D/19268 TDI Double Inner Race Taper Roller Bearing 1.4375x2.6875x1.4492x1.5 inch
Regular price
Rs. 48,892.93
Regular price
Sale price
Rs. 48,892.93
Taxes included.
In stock
Price Break
10+
Rs. 43,514.71
19+
Rs. 41,070.06
29+
Rs. 40,581.13
39+
Rs. 40,092.20
49+
Rs. 39,603.27
74+
Rs. 39,114.34
99+
Rs. 36,669.70
199+
Rs. 36,180.77
249+
Rs. 35,691.84
499+
Rs. 35,202.91
999+
Rs. 34,225.05
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 68.26mm = 2.687 (2-11/16) inch
- Width:
- 36.81mm = 1.449 inch
Technical
Technical
| d | 36.512mm = 1.4375 inch |
|---|---|
| D | 68.262mm = 2.6875 inch |
| T | 36.81mm = 1.4492 inch |
| C | 38.1mm = 1.5 inch |
| Dynamic (1) C1 | 81700N |
| Factors (5) e | 0.44 |
| Factors (5) Y2 | 2.26 |
| Dynamic (2) C90 | 12200N |
| Dynamic (2) Ca90 | 9260N |
| Dynamic (2) C90(2) | 21200N |
| Factors (5) K | 1.31 |
| Shaft max shaft fillet radius R (3) | 0.8mm = 0.03 inch |
| Shaft backing shoulder diameter da | 42.5mm = 1.67 inch |
| Housing max shaft fillet radius r (3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Db | 61mm = 2.4 inch |
| G1 | 17.5 |
| G2 | 11.5 |
| Cg | 0.0694 |
