SKU: 16T2.5/200
16T2.5/200 ContiTech Synchroflex Toothed Belt 16mm Wide 2.5mm Pitch 80 Teeth
In stock
Price Break
Description
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous transmission throughout the entire field of drive technology. They enable purpose-made solutions to be realized effectively and economically.
Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers.
Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance.
- Brand / Quality:
- ContiTech - High Quality
- Belt Width Approx:
- 16mm
- Belt Length Approx:
- 200mm
- Number of Teeth:
- 80

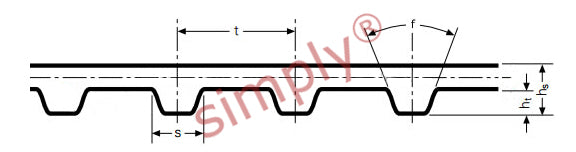

Technical
| No Teeth | 80 |
|---|---|
| Width | 16mm |
| Tooth Pitch t | 2.5mm |
| Belt Length | 200mm |
| Belt Thickness h<sub>s</sub> | 1.3mm |
| Tooth Height h<sub>t</sub> | 0.7mm |
| Flank Angle | 40 deg |
| Tension member loadings | 195 Fadm(N) |
| Belt weight | 0.024kg/m |
