Branded 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
Branded 16B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
Rs. 1,208.50
Regular price
Sale price
Rs. 1,208.50
Taxes included.
Equivalent to: 16B-3-CL
In stock
Price Break
10+
Rs. 1,075.57
19+
Rs. 1,015.14
29+
Rs. 1,003.06
39+
Rs. 990.97
49+
Rs. 978.89
74+
Rs. 966.80
99+
Rs. 906.38
199+
Rs. 894.29
249+
Rs. 882.21
499+
Rs. 870.12
999+
Rs. 845.95
Description
Description

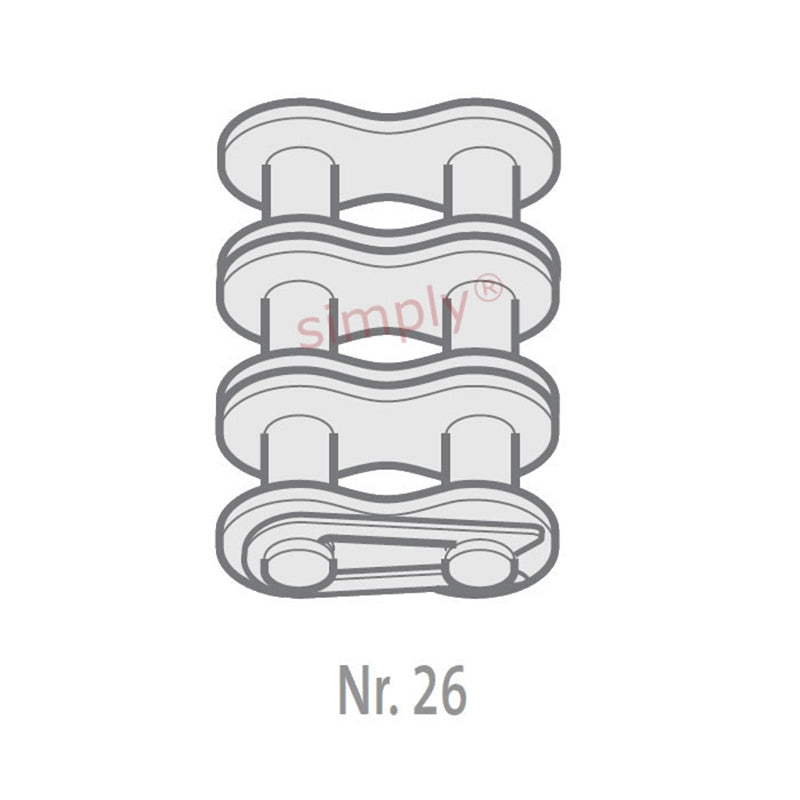

Branded CL / No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 16B-3-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.05mm |
| Plate Width Inner max (E) | 4mm |
| Plate Width Outer max (F) | 3.2mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H3) | 103.2mm |
| Connecting Link Extension max (J) | 3.60000000000001mm |
| ISO606 Tensile Strength min | 173000 N |
| Weight | 0.113kg/m |
