Branded 16B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1 inch Pitch
Branded 16B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1 inch Pitch
Regular price
Rs. 984.46
Regular price
Sale price
Rs. 984.46
Taxes included.
Equivalent to: 16B-3-OL
In stock
Price Break
10+
Rs. 876.17
19+
Rs. 826.95
29+
Rs. 817.10
39+
Rs. 807.26
49+
Rs. 797.41
74+
Rs. 787.57
99+
Rs. 738.35
199+
Rs. 728.50
249+
Rs. 718.66
499+
Rs. 708.81
999+
Rs. 689.12
Description
Description

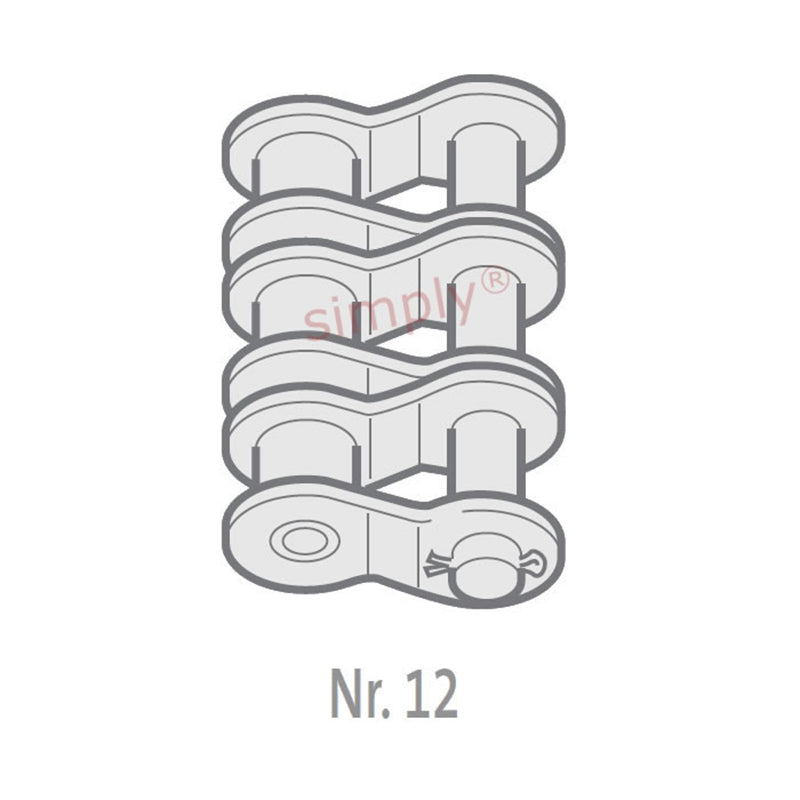

Branded OL / No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 16B-3-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.05mm |
| Plate Width Inner max (E) | 4mm |
| Plate Width Outer max (F) | 3.2mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H3) | 103.2mm |
| Connecting Link Extension max (J) | 3.60000000000001mm |
| ISO606 Tensile Strength min | 173000 N |
| Weight | 0.063kg/m |
