SKU: 16B-2-SYN-NO26-RENOLD

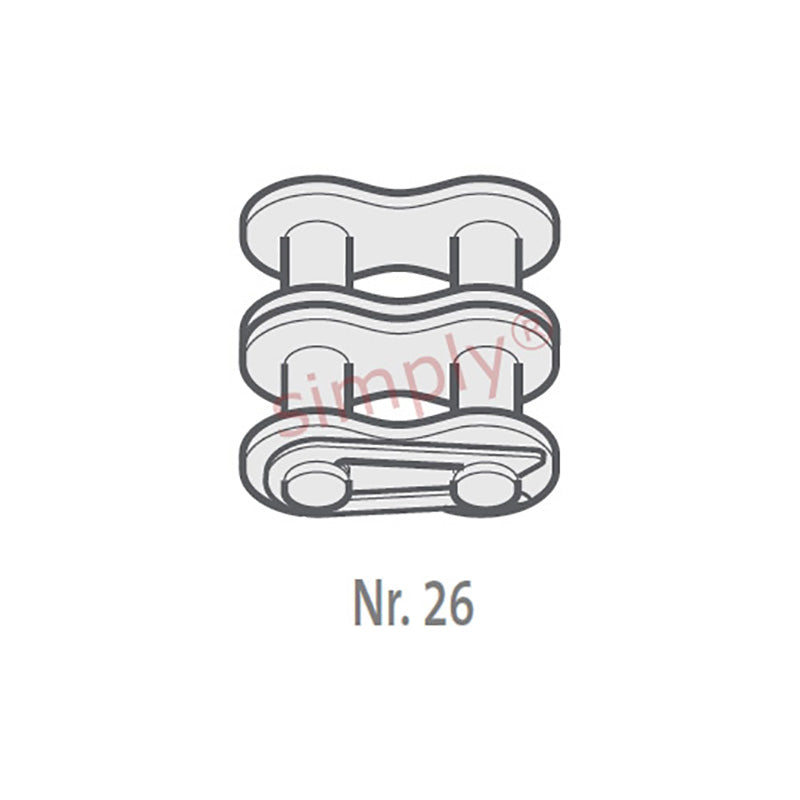

Renold Synergy 16B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
Renold Synergy 16B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
Rs. 6,773.90
ex VAT
Regular price
Sale price
Rs. 6,773.90
ex VAT
In stock
Price Break
10+
Rs. 6,028.77
19+
Rs. 5,690.08
29+
Rs. 5,622.34
39+
Rs. 5,554.60
49+
Rs. 5,486.86
74+
Rs. 5,419.12
99+
Rs. 5,080.43
199+
Rs. 5,012.69
249+
Rs. 4,944.95
499+
Rs. 4,877.21
999+
Rs. 4,741.73
Couldn't load pickup availability
Description
Description
| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.08mm |
| Plate Width Inner max (E) | 4.12mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H2) | 66.8mm |
| Connecting Link Extension max (J) | 2.2mm |
| Transverse Pitch nom (K) | 31.88mm |
| ISO606 Tensile Strength min | 106000 N |
| Weight | 0.046kg/m |
