SKU: 16B-2-NO30-MB
Branded 16B-2-NO30 BS Duplex Chain Double Cranked Link 1 inch Pitch
Branded 16B-2-NO30 BS Duplex Chain Double Cranked Link 1 inch Pitch
Regular price
Rs. 1,454.03
ex VAT
Regular price
Sale price
Rs. 1,454.03
ex VAT
Equivalent to: 16B-2-DOL
In stock
Price Break
10+
Rs. 1,294.09
19+
Rs. 1,221.39
29+
Rs. 1,206.84
39+
Rs. 1,192.30
49+
Rs. 1,177.76
74+
Rs. 1,163.22
99+
Rs. 1,090.52
199+
Rs. 1,075.98
249+
Rs. 1,061.44
499+
Rs. 1,046.90
999+
Rs. 1,017.82
Couldn't load pickup availability
Description
Description

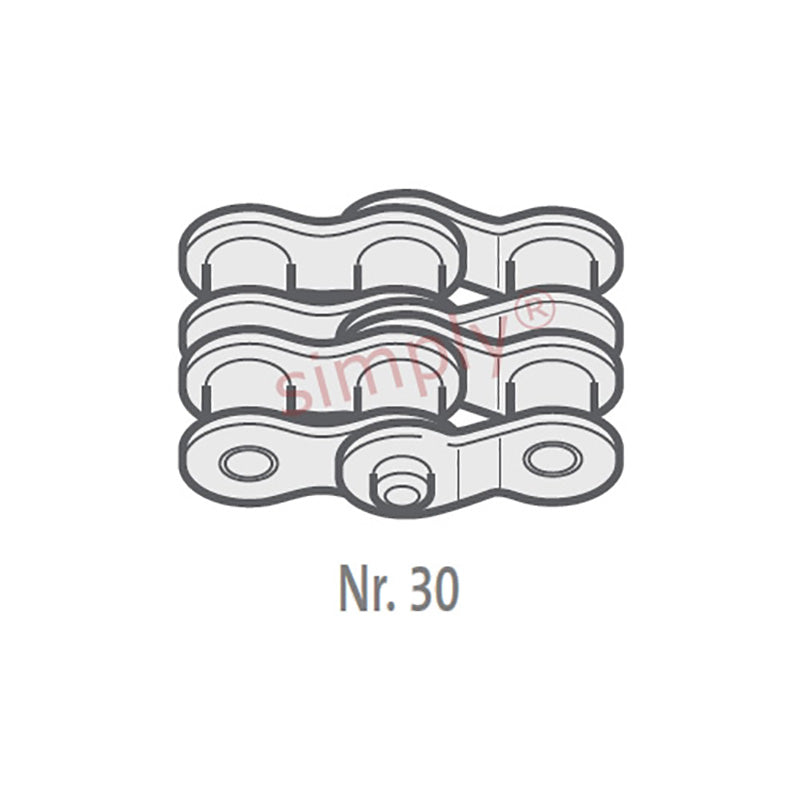

Branded DOL / No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Equivalent: 16B-2-DOL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.05mm |
| Plate Width Inner max (E) | 4mm |
| Plate Width Outer max (F) | 3.2mm |
| Pin Diameter max (G) | 8.2mm |
| Pin Length max (H2) | 67.5mm |
| Connecting Link Extension max (J) | 1.59999999999999mm |
| Transverse Pitch nom (K) | 31.88mm |
| ISO606 Tensile Strength min | 106000 N |
| Weight | 0.046kg/m |
