SKU: 16B-2-NO26-MB
Branded 16B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
Branded 16B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
Rs. 910.71
ex VAT
Regular price
Sale price
Rs. 910.71
ex VAT
Equivalent to: 16B-2-CL
In stock
Price Break
10+
Rs. 810.53
19+
Rs. 765.00
29+
Rs. 755.89
39+
Rs. 746.78
49+
Rs. 737.68
74+
Rs. 728.57
99+
Rs. 683.03
199+
Rs. 673.93
249+
Rs. 664.82
499+
Rs. 655.71
999+
Rs. 637.50
Couldn't load pickup availability
Description
Description

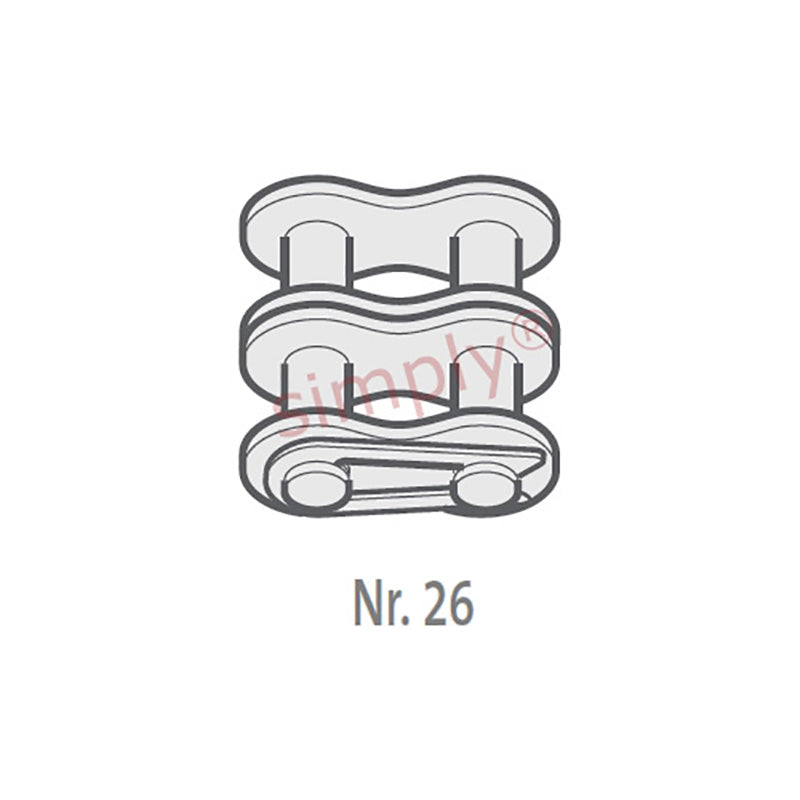

Branded CL / No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 16B-2-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.05mm |
| Plate Width Inner max (E) | 4mm |
| Plate Width Outer max (F) | 3.2mm |
| Pin Diameter max (G) | 8.2mm |
| Pin Length max (H2) | 67.5mm |
| Connecting Link Extension max (J) | 1.59999999999999mm |
| Transverse Pitch nom (K) | 31.88mm |
| ISO606 Tensile Strength min | 106000 N |
| Weight | 0.046kg/m |
