SKU: 1654-2RS-FAG

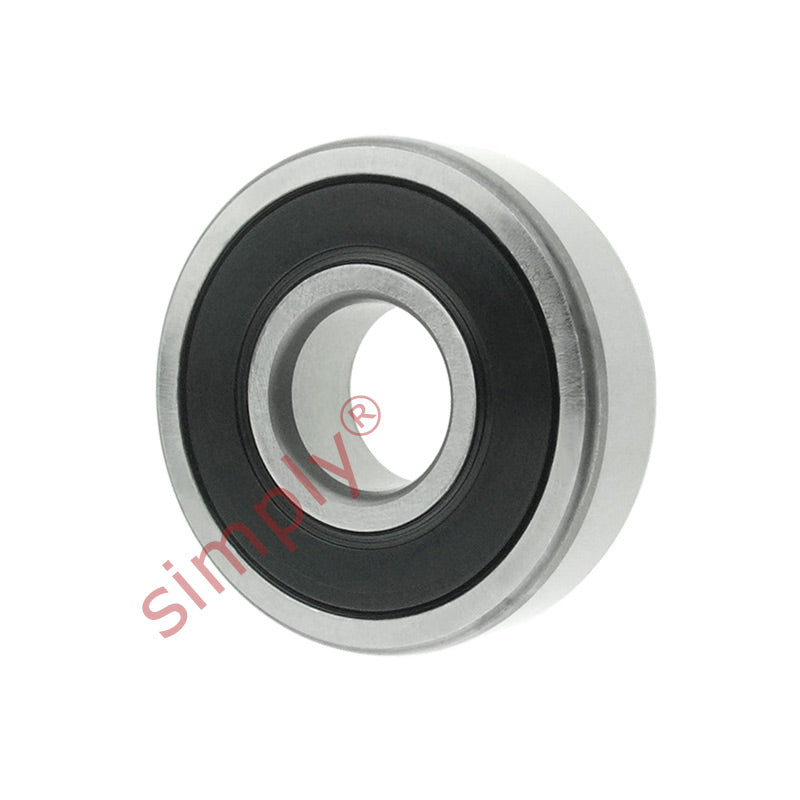

FAG 16542RS Rubber Sealed Deep Groove Ball Bearing 1.25x2.5x0.625 inch
FAG 16542RS Rubber Sealed Deep Groove Ball Bearing 1.25x2.5x0.625 inch
Equivalent to: 1654-2RS 1654RS 1654-2RLD
Out of stock
Share this product
Description
Description
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life
Equivalent: 1654-2RS 1654RS 1654-2RLD
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Bore (d) | 1.25 inch = 31.75mm (Tolerance +.0000 to minus 0.0005) |
|---|---|
| Outside Diameter (D) | 2.5 inch = 63.5mm (Tolerance +.0000 to minus 0.0006) |
| Width (B) | 0.625 inch = 15.875mm (Tolerance +.0000 to minus 0.0047) |
| Maximum (r) | 0.035 inch |
| Load Ratings Dynamic | 3955 lbf |
| Load Ratings Static | 2300 lbf |
