SKU: 1615-2RS-FAG

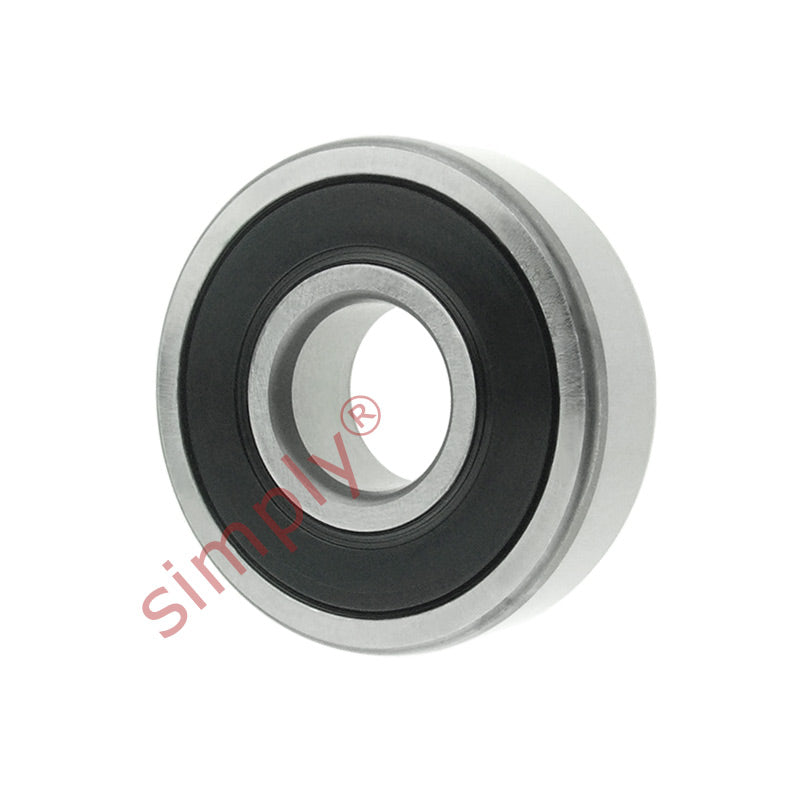

FAG 16152RS Rubber Sealed Deep Groove Ball Bearing 0.4375x1.125x0.375 inch
FAG 16152RS Rubber Sealed Deep Groove Ball Bearing 0.4375x1.125x0.375 inch
Equivalent to: 1615-2RS 1615RS 1615-2RLD
Out of stock
Share this product
Description
Description
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life
Equivalent: 1615-2RS 1615RS 1615-2RLD
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 11.11mm = 0.437 (7/16) inch
- Outside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Width:
- 9.53mm = 0.375 (3/8) inch
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Bore (d) | 0.4375 inch = 11.1125mm (Tolerance +.0000 to minus 0.0005) |
|---|---|
| Outside Diameter (D) | 1.125 inch = 28.575mm (Tolerance +.0000 to minus 0.0005) |
| Width (B) | 0.375 inch = 9.525mm (Tolerance +.0000 to minus 0.005) |
| Maximum (r) | 0.025 inch |
| Load Ratings Dynamic | 1265 lbf |
| Load Ratings Static | 538 lbf |
