SKU: 16034-NTN

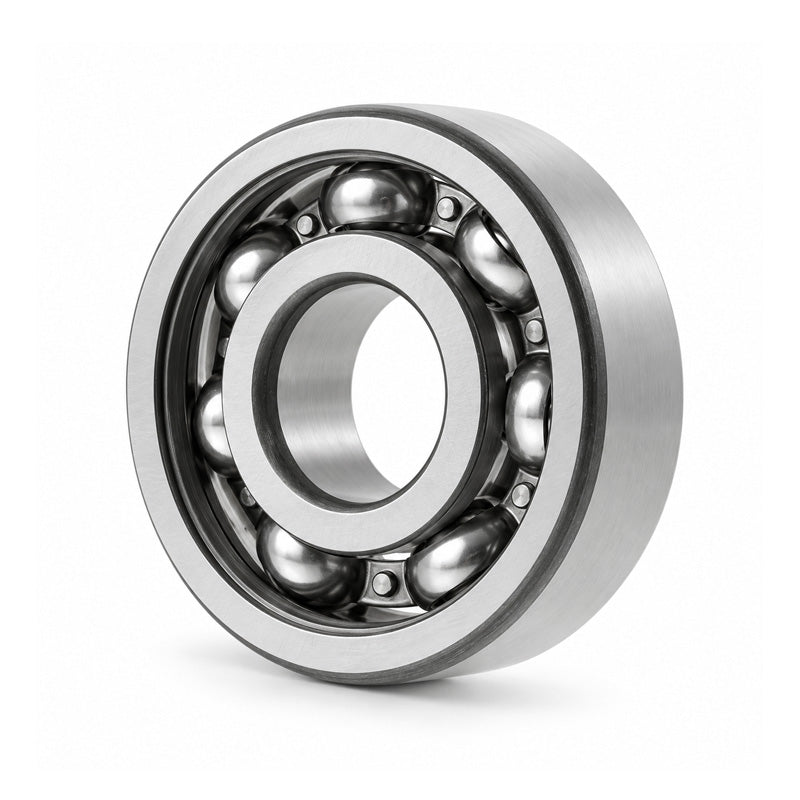

NTN 16034 Open Type Deep Groove Ball Bearing 170x260x28mm
NTN 16034 Open Type Deep Groove Ball Bearing 170x260x28mm
Regular price
Rs. 29,691.39
Regular price
Sale price
Rs. 29,691.39
Taxes included.
Equivalent to: 16034CM ELN170 ELLN170
In stock
Price Break
10+
Rs. 26,425.34
19+
Rs. 24,940.77
29+
Rs. 24,643.85
39+
Rs. 24,346.94
49+
Rs. 24,050.03
74+
Rs. 23,753.11
99+
Rs. 22,268.54
199+
Rs. 21,971.63
249+
Rs. 21,674.71
499+
Rs. 21,377.80
999+
Rs. 20,783.97
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 16034CM ELN170 ELLN170
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 170mm
- Outside Diameter:
- 260mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 170mm |
| D | 260mm |
| B | 28mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 131 kN |
| C<sub>or</sub> | 128 kN |
| C<sub>u</sub> | 5.9 kN |
| f<sub>0</sub> | 16.4 kN |
| Grease | 2400 rpm |
| Oil | 2800 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 178mm |
| D<sub>a</sub> Max. | 252mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 4.93 kg |
