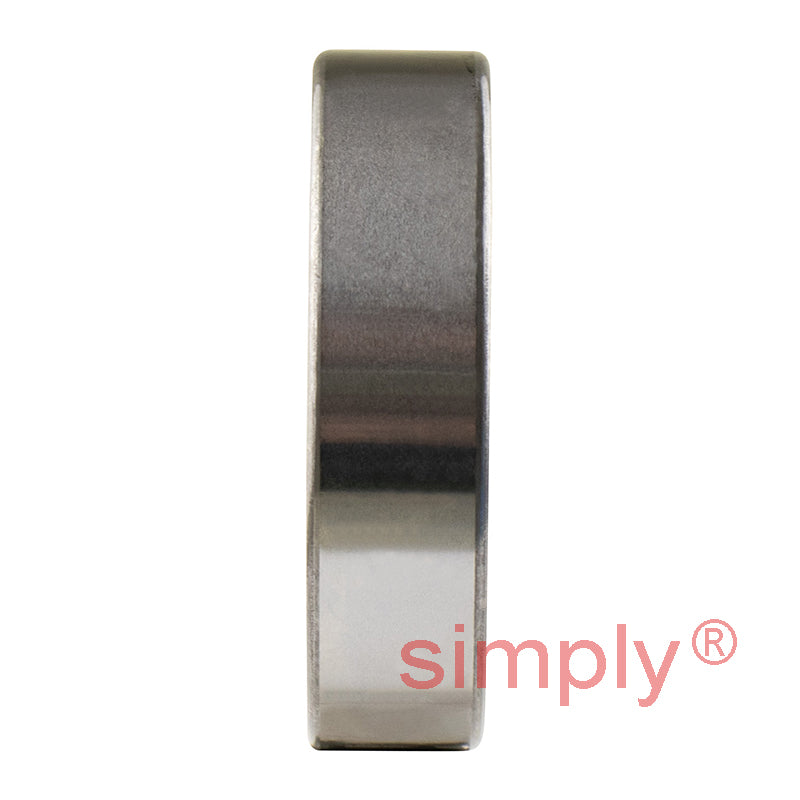

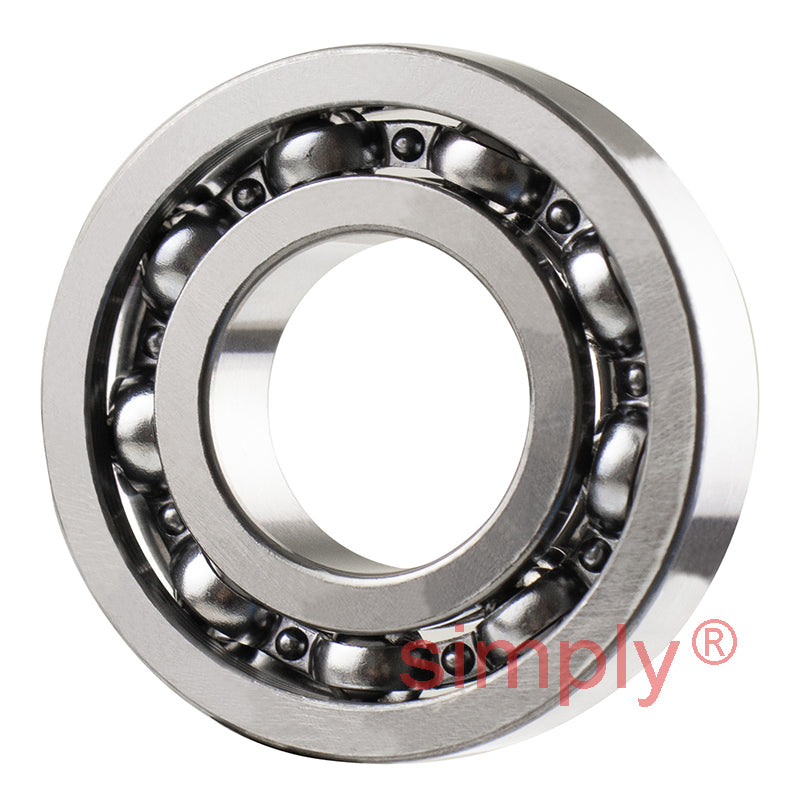

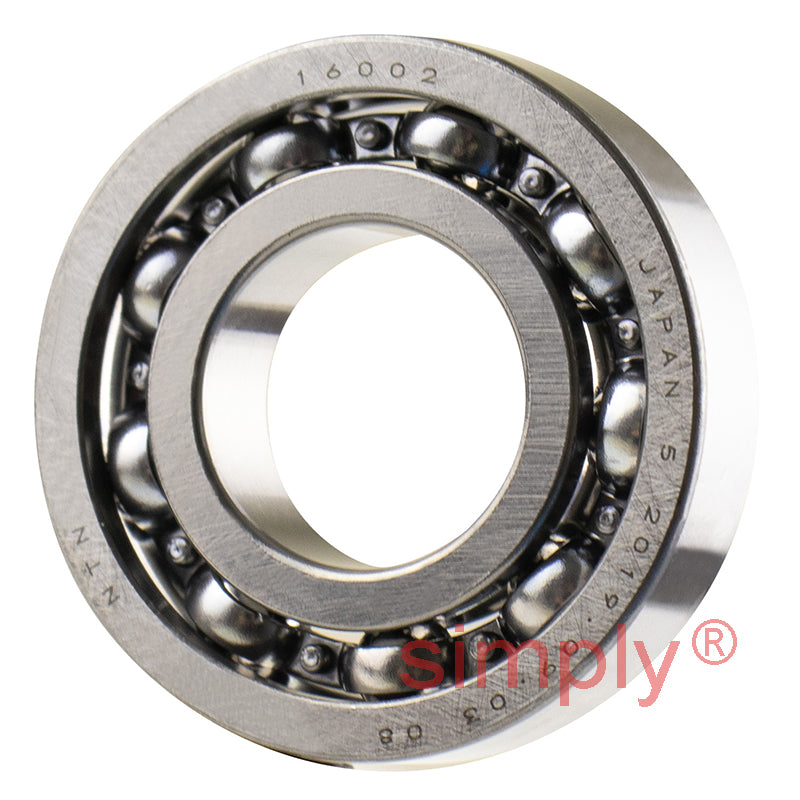

NTN 16002 Open Type Deep Groove Ball Bearing 15x32x8mm
NTN 16002 Open Type Deep Groove Ball Bearing 15x32x8mm
Regular price
Rs. 1,074.08
Regular price
Sale price
Rs. 1,074.08
Taxes included.
Equivalent to: 16002CM EL15 ELL15
In stock
Price Break
10+
Rs. 955.93
19+
Rs. 902.23
29+
Rs. 891.49
39+
Rs. 880.75
49+
Rs. 870.00
74+
Rs. 859.26
99+
Rs. 805.56
199+
Rs. 794.82
249+
Rs. 784.08
499+
Rs. 773.34
999+
Rs. 751.86
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 16002CM EL15 ELL15
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 8mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 15mm |
| D | 32mm |
| B | 8mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 6.2 kN |
| C<sub>or</sub> | 2.84 kN |
| C<sub>u</sub> | 0.222 kN |
| f<sub>0</sub> | 13.9 kN |
| Grease | 22000 rpm |
| Oil | 26000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 17mm |
| D<sub>a</sub> Max. | 30mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.025 kg |
