Branded 160-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 2 inch Pitch
Branded 160-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 2 inch Pitch
Regular price
Rs. 9,427.30
Regular price
Sale price
Rs. 9,427.30
Taxes included.
Equivalent to: 160-3-OL
In stock
Price Break
10+
Rs. 8,390.30
19+
Rs. 7,918.93
29+
Rs. 7,824.66
39+
Rs. 7,730.39
49+
Rs. 7,636.11
74+
Rs. 7,541.84
99+
Rs. 7,070.48
199+
Rs. 6,976.20
249+
Rs. 6,881.93
499+
Rs. 6,787.66
999+
Rs. 6,599.11
Description
Description

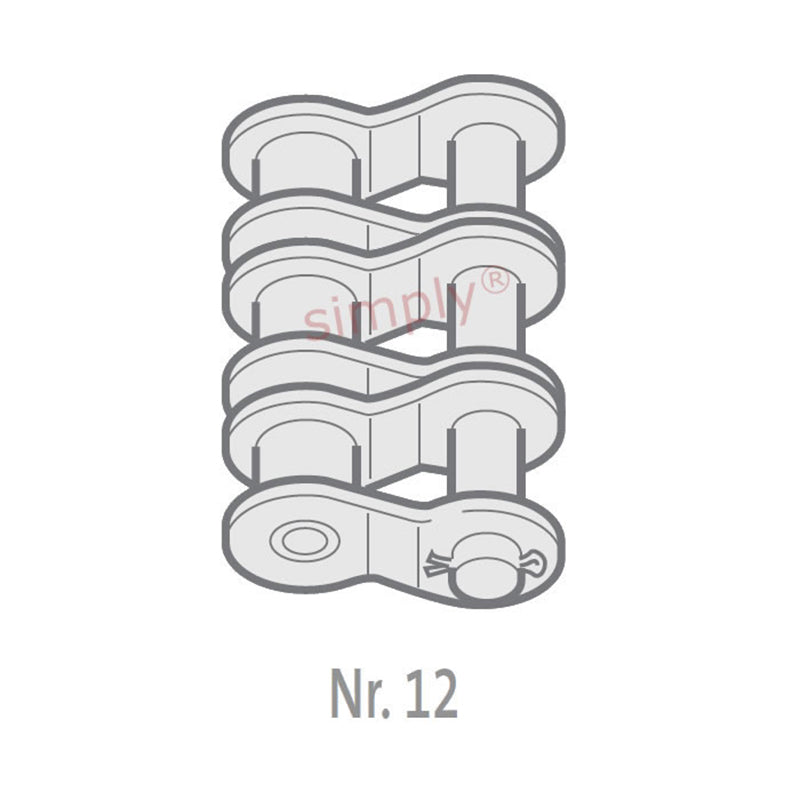

Branded OL / No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 160-3-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48mm |
| Plate Width Inner max (E) | 6.4mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 14.2mm |
| Pin Length max (H1) | 170.5mm |
| Connecting Link Extension max (J) | 16.8mm |
| ISO606 Tensile Strength min | 669000 N |
| Weight | 58.55kg/m |
