Renold Synergy 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch
Renold Synergy 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch
Regular price
Rs. 50,706.44
ex VAT
Regular price
Sale price
Rs. 50,706.44
ex VAT
In stock
Price Break
10+
Rs. 45,128.73
19+
Rs. 42,593.41
29+
Rs. 42,086.35
39+
Rs. 41,579.28
49+
Rs. 41,072.22
74+
Rs. 40,565.15
99+
Rs. 38,029.83
199+
Rs. 37,522.77
249+
Rs. 37,015.70
499+
Rs. 36,508.64
999+
Rs. 35,494.51
Couldn't load pickup availability
Description
Description

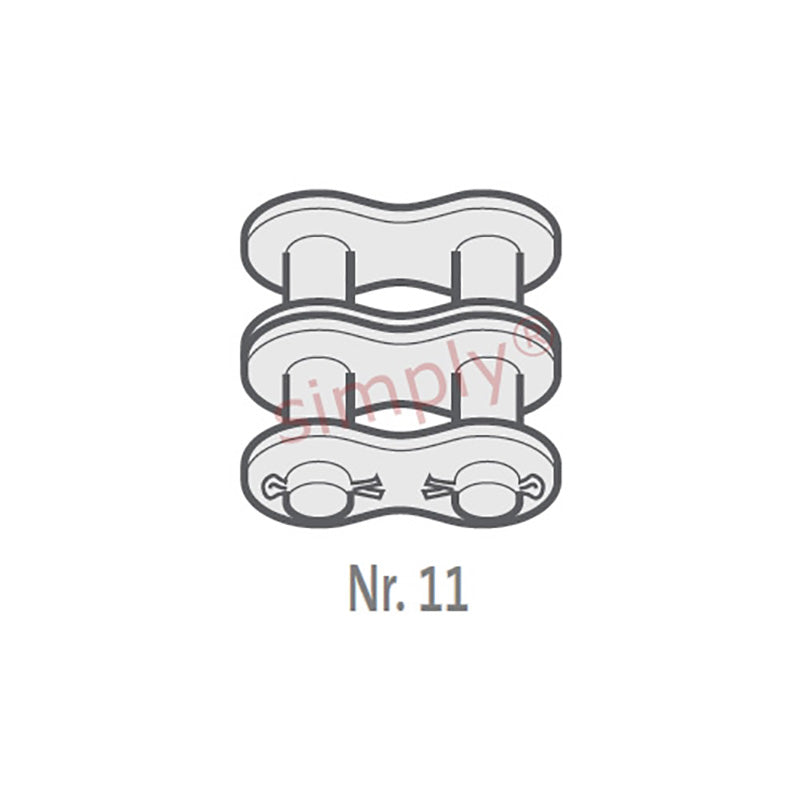

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48.26mm |
| Plate Width Inner max (E) | 6.35mm |
| Plate Width Outer max (F) | 6.35mm |
| Pin Diameter max (G) | 14.29mm |
| Pin Length max (H2) | 121.6mm |
| Connecting Link Extension max (J) | 6.5mm |
| Transverse Pitch nom (K) | 58.55mm |
| ISO606 Tensile Strength min | 446000 N |
| Weight | 0.87kg/m |
