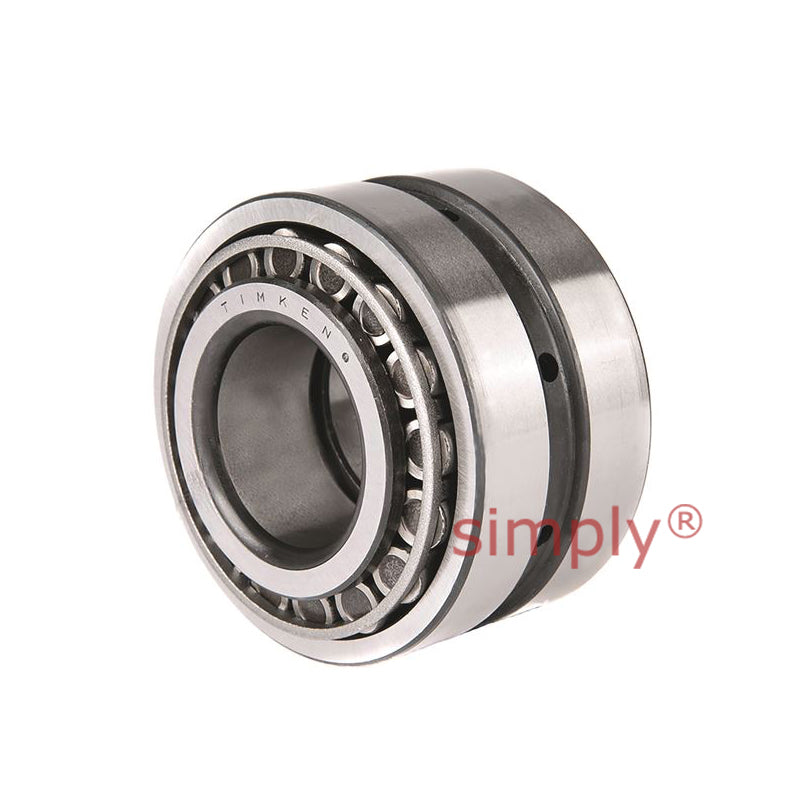

Timken 14139/14276D/X2S14137 TDO Double Outer Race Taper Roller Bearing 1.377x2.717x1.8126x1.5 inch
Timken 14139/14276D/X2S14137 TDO Double Outer Race Taper Roller Bearing 1.377x2.717x1.8126x1.5 inch
Regular price
Rs. 13,072.00
Regular price
Sale price
Rs. 13,072.00
Taxes included.
Low stock
Price Break
10+
Rs. 11,634.08
19+
Rs. 10,980.48
29+
Rs. 10,849.76
39+
Rs. 10,719.04
49+
Rs. 10,588.32
74+
Rs. 10,457.60
99+
Rs. 9,804.00
199+
Rs. 9,673.28
249+
Rs. 9,542.56
499+
Rs. 9,411.84
999+
Rs. 9,150.40
Description
Description

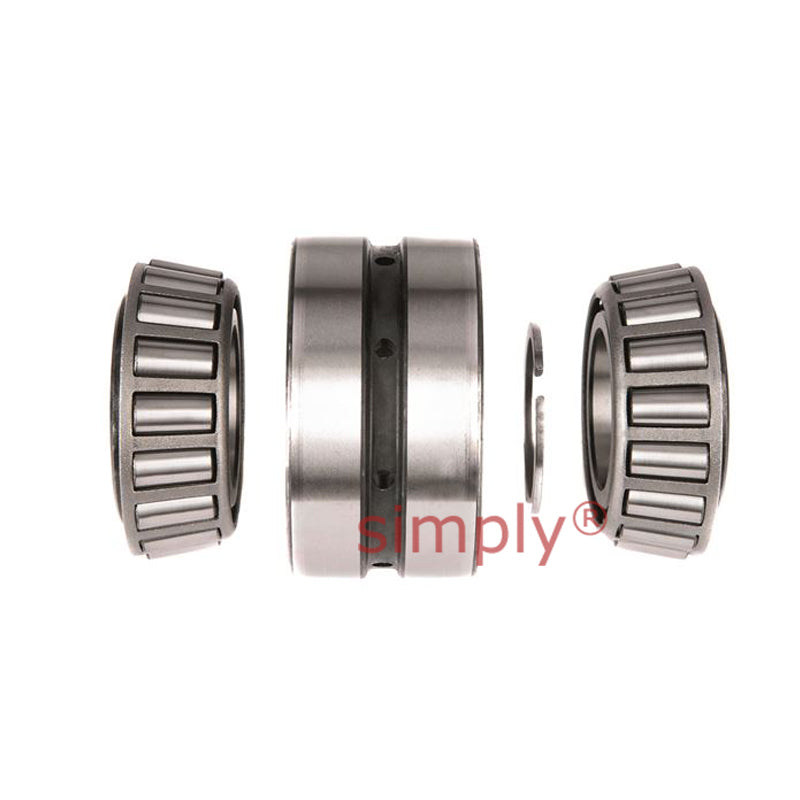

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 34.99mm = 1.378 inch
- Outside Diameter:
- 69.01mm = 2.717 inch
- Width:
- 46.04mm = 1.813 (1-13/16) inch
Technical
Technical
| d | 34.975mm = 1.377 inch |
|---|---|
| D | 69.012mm = 2.717 inch |
| T | 46.04mm = 1.8126 inch |
| C | 38.1mm = 1.5 inch |
| Dynamic (1) C1 | 88000N |
| Factors (5) e | 0.38 |
| Factors (5) Y1 | 1.77 |
| Factors (5) Y2 | 2.63 |
| Dynamic (2) C90 | 13100N |
| Dynamic (2) Ca90 | 8570N |
| Dynamic (2) C90(2) | 22800N |
| Factors (5) K | 1.53 |
| Shaft max shaft fillet radius R(3) | 1.3mm = 0.05 inch |
| Shaft backing shoulder diameter db | 42.5mm = 1.67 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 63mm = 2.48 inch |
| G1 | 18 |
| G2 | 9.4 |
| Cg | 0.0668 |
