SKU: 14125A/14276-TIM
Timken 14125A/14276 TS Single-Row Taper Roller Bearing 1.25x2.717x0.7813 inch
Timken 14125A/14276 TS Single-Row Taper Roller Bearing 1.25x2.717x0.7813 inch
Regular price
Rs. 4,732.85
Regular price
Sale price
Rs. 4,732.85
Taxes included.
In stock
Price Break
10+
Rs. 4,212.24
19+
Rs. 3,975.59
29+
Rs. 3,928.27
39+
Rs. 3,880.94
49+
Rs. 3,833.61
74+
Rs. 3,786.28
99+
Rs. 3,549.64
199+
Rs. 3,502.31
249+
Rs. 3,454.98
499+
Rs. 3,407.65
999+
Rs. 3,313.00
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 69.01mm = 2.717 inch
- Width:
- 19.84mm = 0.781 (25/32) inch

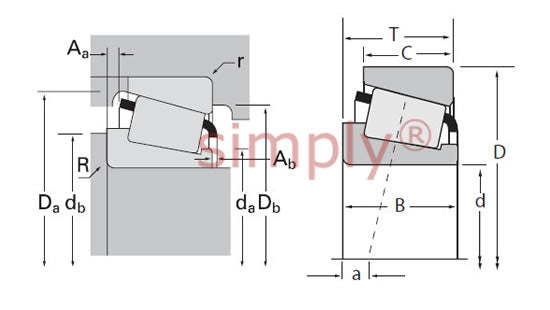

Technical
Technical
| d | 31.75mm = 1.25 inch |
|---|---|
| D | 69.012mm = 2.717 inch |
| T | 19.845mm = 0.7813 inch |
| Dynamic (1) C1 | 50600N |
| Factors (5) e | 0.38 |
| Factors (5) Y | 1.57 |
| Dynamic (2) C90 | 13100N |
| Dynamic (2) Ca90 | 8570N |
| Factors (5) K | 1.53 |
| Static C0 | 61700N |
| Bearing B | 19.583mm = 0.771 inch |
| Bearing C | 15.875mm = 0.625 inch |
| Bearing a(3) | -4.3mm = -0.17 inch |
| Shaft max shaft fillet radius R(4) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter da | 38.5mm = 1.52 inch |
| Shaft backing shoulder diameter db | 44.5mm = 1.75 inch |
| Housing backing shoulder diameter r(4) | 1.3mm = 0.05 inch |
| Housing backing shoulder diameter Da | 63mm = 2.48 inch |
| Housing backing shoulder diameter Db | 60mm = 2.36 inch |
| Cage Aa | 1mm = 0.04 inch |
| Cage Ab | 1.4mm = 0.06 inch |
| G1 | 18 |
| G2 | 9.4 |
| Cg | 0.0668 |
