SKU: 140-2-NO11-DUN
Branded 140-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Branded 140-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Regular price
Rs. 2,706.32
Regular price
Sale price
Rs. 2,706.32
Taxes included.
Equivalent to: 140-2-CL-COT 140-2-CL
In stock
Price Break
10+
Rs. 2,408.62
19+
Rs. 2,273.31
29+
Rs. 2,246.25
39+
Rs. 2,219.18
49+
Rs. 2,192.12
74+
Rs. 2,165.06
99+
Rs. 2,029.74
199+
Rs. 2,002.68
249+
Rs. 1,975.61
499+
Rs. 1,948.55
999+
Rs. 1,894.42
Description
Description

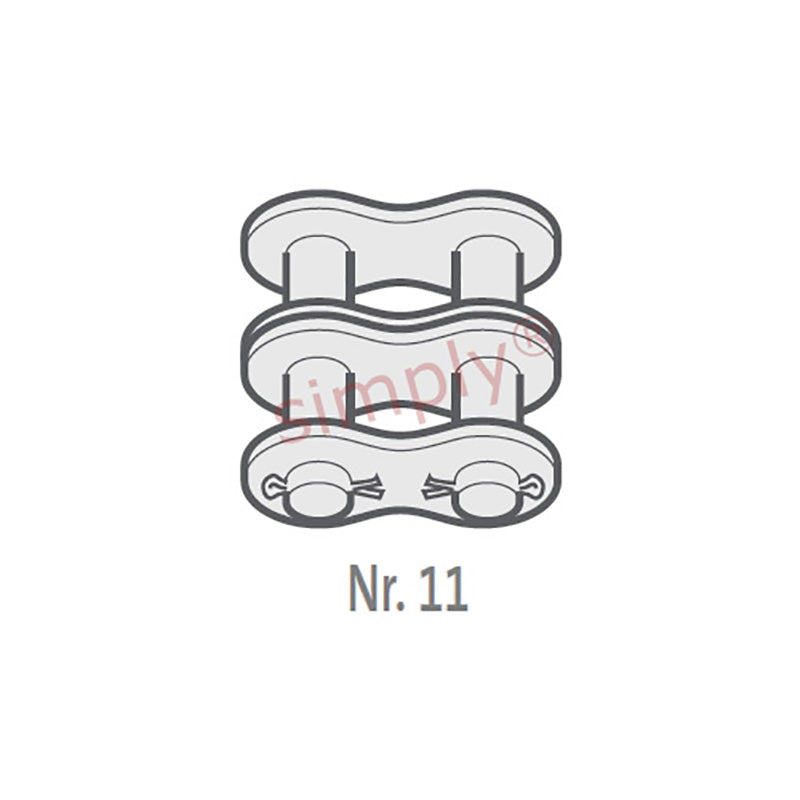

Branded COT / No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 140-2-CL-COT 140-2-CL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 42mm |
| Plate Width Inner max (E) | 5.6mm |
| Plate Width Outer max (F) | 5.6mm |
| Pin Diameter max (G) | 12.7mm |
| Pin Length max (H2) | 103.1mm |
| Connecting Link Extension max (J) | 4.80000000000001mm |
| Transverse Pitch nom (K) | 48.87mm |
| ISO606 Tensile Strength min | 340000 N |
| Weight | 0.77kg/m |
