SKU: 1325-7/8EC-RHP

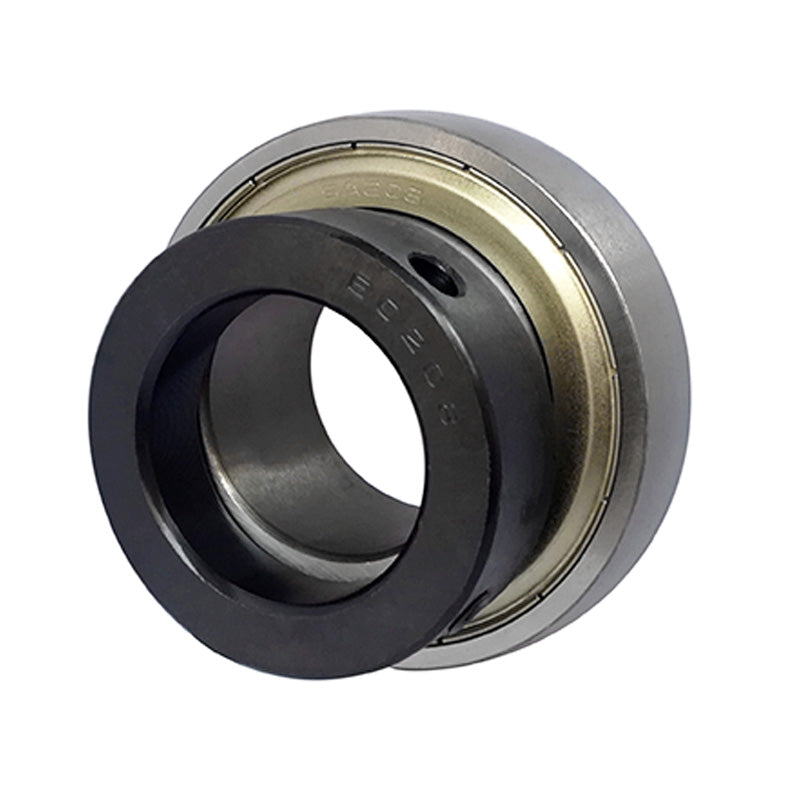

RHP 1325-7/8EC Parallel Outside Flat Back Collar Bearing Insert 7/8 inch Bore 52mm Outside Diameter
RHP 1325-7/8EC Parallel Outside Flat Back Collar Bearing Insert 7/8 inch Bore 52mm Outside Diameter
Regular price
Rs. 3,306.53
ex VAT
Regular price
Sale price
Rs. 3,306.53
ex VAT
In stock
Price Break
10+
Rs. 2,942.81
19+
Rs. 2,777.49
29+
Rs. 2,744.42
39+
Rs. 2,711.35
49+
Rs. 2,678.29
74+
Rs. 2,645.22
99+
Rs. 2,479.90
199+
Rs. 2,446.83
249+
Rs. 2,413.77
499+
Rs. 2,380.70
999+
Rs. 2,314.57
Couldn't load pickup availability
Description
Description
|
RHP 1300 EC Series: Flat back bearing insert with parallel outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, eccentric collar fixing, sealed for life |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
- Style:
- 1325
- Type:
- Parallel Outer
Technical
Technical
| Bore | 7/8 inch |
|---|---|
| D | 2.0472 inch |
| C | 0.591 inch |
| B2 | 1.217 inch |
| s1 | 0.298 inch |
| d2 | 1.5 inch |
| r | 0.039 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.23 kg |
