SKU: 1312ETN9/C3-SKF

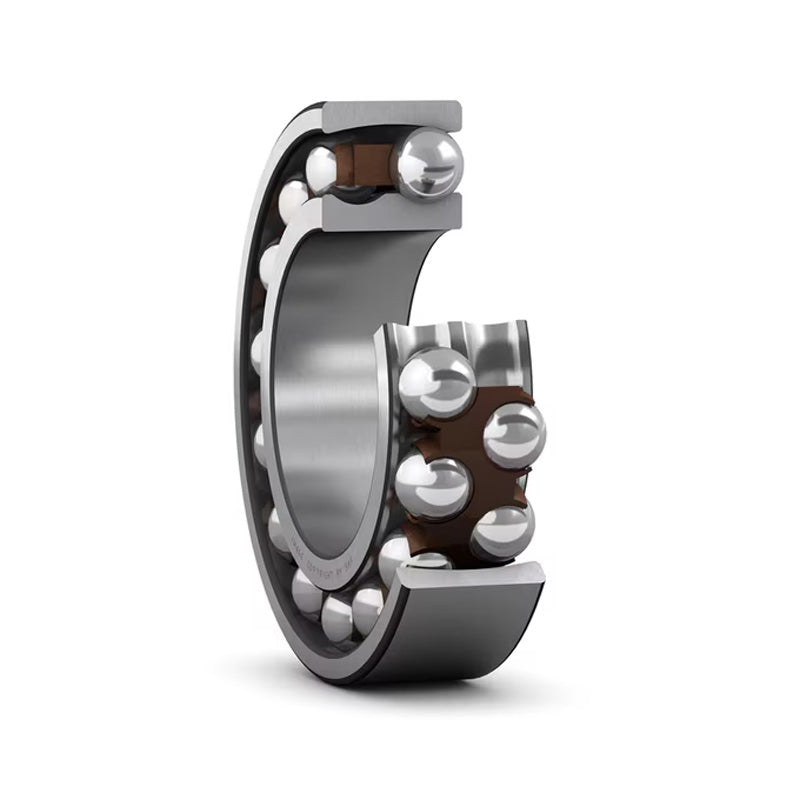

SKF 1312ETN9C3 Open Self Aligning Ball Bearing with Cylindrical Bore 60x130x31mm
SKF 1312ETN9C3 Open Self Aligning Ball Bearing with Cylindrical Bore 60x130x31mm
Regular price
Rs. 15,634.93
Regular price
Sale price
Rs. 15,634.93
Taxes included.
In stock
Price Break
10+
Rs. 13,915.09
19+
Rs. 13,133.34
29+
Rs. 12,976.99
39+
Rs. 12,820.64
49+
Rs. 12,664.29
74+
Rs. 12,507.94
99+
Rs. 11,726.20
199+
Rs. 11,569.85
249+
Rs. 11,413.50
499+
Rs. 11,257.15
999+
Rs. 10,944.45
Description
Description
|
SKF Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds. Benefits: Tolerates misalignment, cool running, self centering |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 60mm |
| D | 130mm |
| B | 31mm |
| D1 | 118mm |
| d2 | 91.6mm |
| r1r2 | 2.1mm |
| b | mm |
| K | mm |
| da min | 72mm |
| Da max | 118mm |
| ra max | 2mm |
| --- | Calculation Data |
| Dynamic load C | 58.5 kN |
| Static load Co | 22 kN |
| Fatigue load limit Pu | 1.12 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 6300 rpm |
| Calculation factor e | 0.22 |
| Calculation factor Y0 | 2.8 |
| Calculation factor Y1 | 2.9 |
| Calculation factor Y2 | 4.5 |
| --- | Weights |
| Weight | 1.95 kg |
