SKU: 12B-3-SD-NO12-RENOLD
Renold SD 12B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Renold SD 12B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Regular price
Rs. 1,057.44
Regular price
Sale price
Rs. 1,057.44
Taxes included.
In stock
Price Break
10+
Rs. 941.12
19+
Rs. 888.25
29+
Rs. 877.68
39+
Rs. 867.10
49+
Rs. 856.53
74+
Rs. 845.95
99+
Rs. 793.08
199+
Rs. 782.51
249+
Rs. 771.93
499+
Rs. 761.36
999+
Rs. 740.21
Description
Description

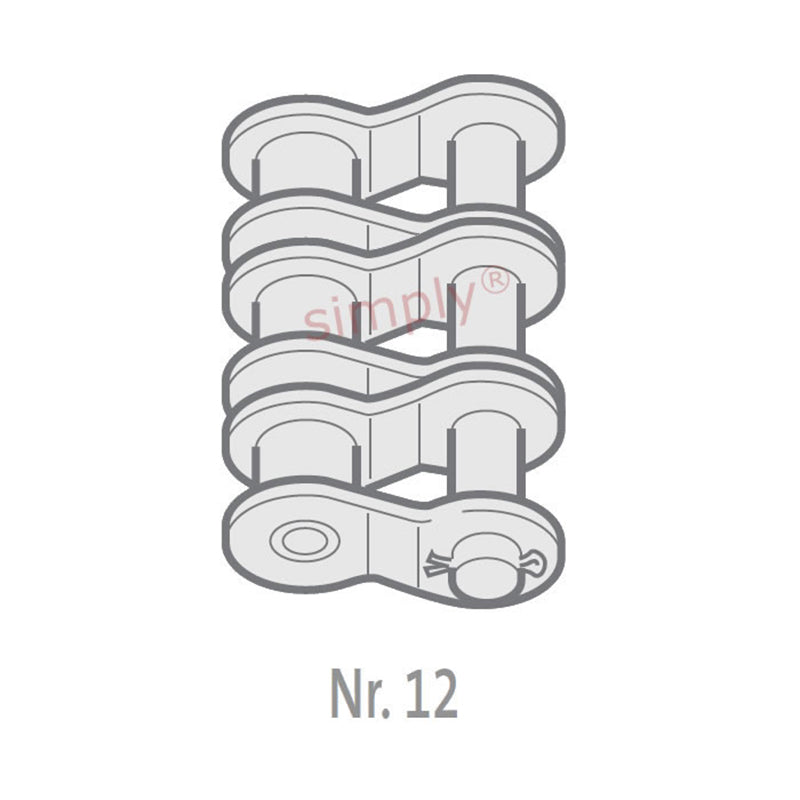

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16.1mm |
| Plate Width Inner max (E) | 1.8mm |
| Plate Width Outer max (F) | 1.8mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H1) | 61.5mm |
| Connecting Link Extension max (J) | 4.5mm |
| ISO606 Tensile Strength min | 86700 N |
| Weight | 0.023kg/m |
