SKU: 12B-3-NO30-MB

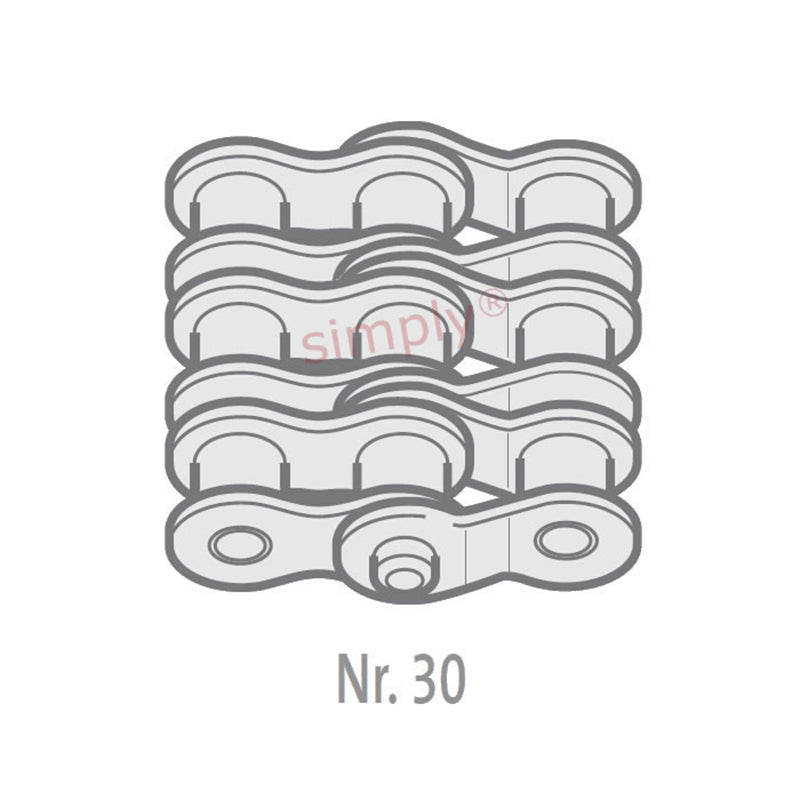

Branded 12B-3-NO30 BS Triplex Chain Double Cranked Link 3/4 inch Pitch
Branded 12B-3-NO30 BS Triplex Chain Double Cranked Link 3/4 inch Pitch
Regular price
Rs. 828.28
Regular price
Sale price
Rs. 828.28
Taxes included.
Equivalent to: 12B-3-DOL
In stock
Price Break
10+
Rs. 737.17
19+
Rs. 695.76
29+
Rs. 687.47
39+
Rs. 679.19
49+
Rs. 670.91
74+
Rs. 662.62
99+
Rs. 621.21
199+
Rs. 612.93
249+
Rs. 604.64
499+
Rs. 596.36
999+
Rs. 579.80
Description
Description
Branded DOL / No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Equivalent: 12B-3-DOL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16.1mm |
| Plate Width Inner max (E) | 1.8mm |
| Plate Width Outer max (F) | 1.8mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H3) | 61.5mm |
| Connecting Link Extension max (J) | 4.5mm |
| ISO606 Tensile Strength min | 86700 N |
| Weight | 0.023kg/m |
