Renold Blue Box 12B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Renold Blue Box 12B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Regular price
Rs. 3,194.49
ex VAT
Regular price
Sale price
Rs. 3,194.49
ex VAT
In stock
Price Break
10+
Rs. 2,843.10
19+
Rs. 2,683.37
29+
Rs. 2,651.43
39+
Rs. 2,619.48
49+
Rs. 2,587.54
74+
Rs. 2,555.59
99+
Rs. 2,395.87
199+
Rs. 2,363.92
249+
Rs. 2,331.98
499+
Rs. 2,300.03
999+
Rs. 2,236.14
Couldn't load pickup availability
Description
Description

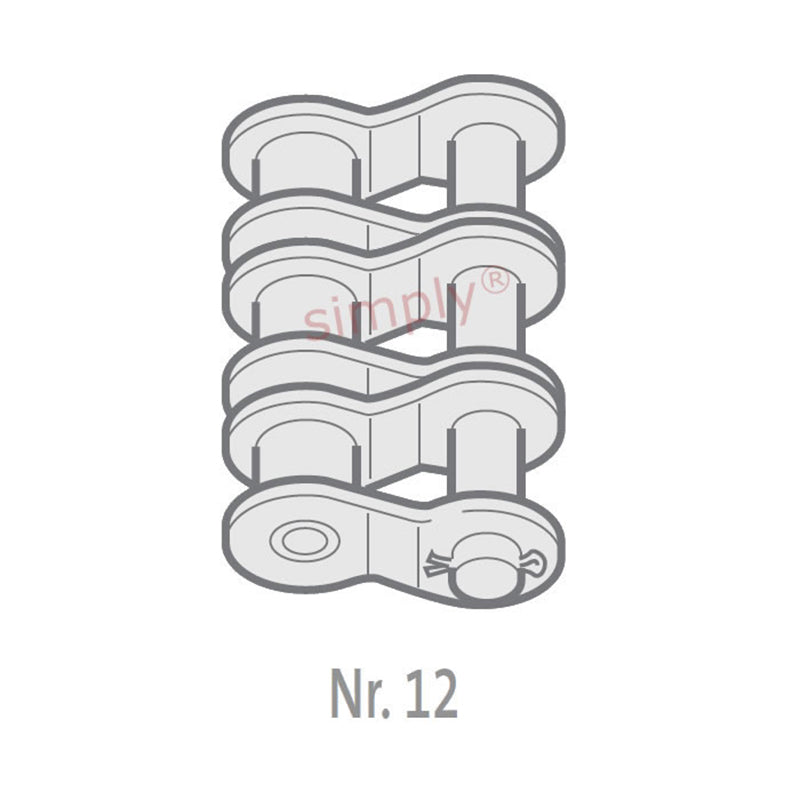

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16mm |
| Plate Width Inner max (E) | 1.81mm |
| Plate Width Outer max (F) | 1.81mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H2) | 60.9mm |
| Connecting Link Extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | 19.46mm |
| ISO606 Tensile Strength min | 86700 N |
| Weight | 0.015kg/m |
