SKU: 12B-2-NO30-MB

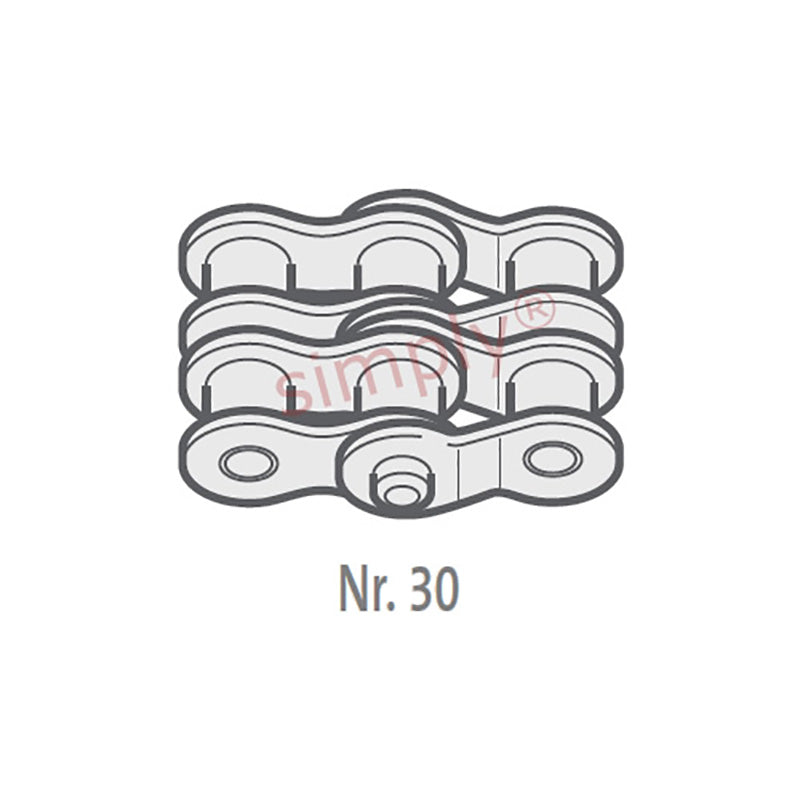

Branded 12B-2-NO30 BS Duplex Chain Double Cranked Link 3/4 inch Pitch
Branded 12B-2-NO30 BS Duplex Chain Double Cranked Link 3/4 inch Pitch
Regular price
Rs. 898.69
Regular price
Sale price
Rs. 898.69
Taxes included.
Equivalent to: 12B-2-DOL
In stock
Price Break
10+
Rs. 799.83
19+
Rs. 754.90
29+
Rs. 745.91
39+
Rs. 736.93
49+
Rs. 727.94
74+
Rs. 718.95
99+
Rs. 674.02
199+
Rs. 665.03
249+
Rs. 656.04
499+
Rs. 647.06
999+
Rs. 629.08
Description
Description
Branded DOL / No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Equivalent: 12B-2-DOL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16.1mm |
| Plate Width Inner max (E) | 1.8mm |
| Plate Width Outer max (F) | 1.8mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H2) | 42.1mm |
| Connecting Link Extension max (J) | 1.5mm |
| Transverse Pitch nom (K) | 19.46mm |
| ISO606 Tensile Strength min | 57800 N |
| Weight | 0.015kg/m |
