SKU: 12B-2-DEL-15FT-SEDIS

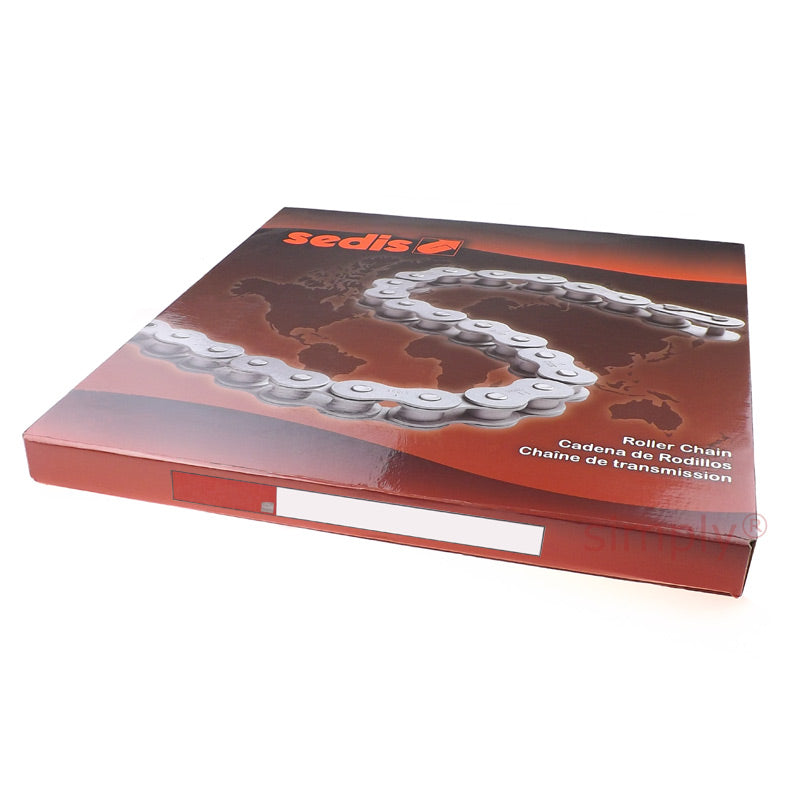

Sedis Delta 12B-2 BS Duplex Roller Chain 15FT Length 3/4 inch Pitch - Allow 2-3 Days
Sedis Delta 12B-2 BS Duplex Roller Chain 15FT Length 3/4 inch Pitch - Allow 2-3 Days
Regular price
Rs. 36,889.89
Regular price
Sale price
Rs. 36,889.89
Taxes included.
In stock
Price Break
5+
Rs. 36,520.99
10+
Rs. 35,045.40
20+
Rs. 34,307.60
50+
Rs. 33,200.90
100+
Rs. 32,463.10
500+
Rs. 30,618.61
1000+
Rs. 25,822.92
Description
Description
|
Sedis Delta® HR Chains for Severe Working Conditions (Abrasion, Shocks, Jerks): British standard chain with high resistance to abrasion and wear. The chain links have a steel hardened pin for ultra-high performance. Chains are pre-tensioned at 30-45% of the breaking load. Chains 08B-16B are lubricated with a new high performance wax offering an enhanced anti-wear protection which can work at temperatures from -30 Degrees Celsius to 130 Degrees Celsius. Other chains are pre-lubricated with initial plant lubrication. |
- Brand / Quality:
- Sedis - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch

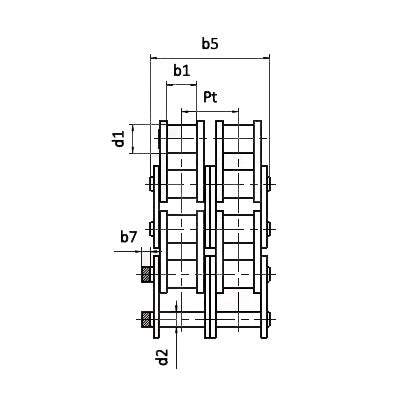

Technical
Technical
| Pitch P | 19.05mm |
|---|---|
| d1 max | 12.07mm |
| b1 min | 11.68mm |
| b5 max | 41.8mm |
| d2 max | 5.72mm |
| h2 max | 16.2mm |
| Pt | 19.46mm |
| b7 min | 1.5mm |
| Ultimate Tensile Strength OSI 606 min | 57.8 kN |
| Ultimate Tensile Strength DELTA® HR min | 61 kN |
| Ultimate Tensile Strength DELTA® HR nom | 69.5 kN |
| Mass per meter | 2.35 kg |
