SKU: 120-3-NO12-MB
Branded 120-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Branded 120-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-1/2 inch Pitch
Regular price
Rs. 5,109.23
Regular price
Sale price
Rs. 5,109.23
Taxes included.
Equivalent to: 120-3-OL
In stock
Price Break
10+
Rs. 4,547.21
19+
Rs. 4,291.75
29+
Rs. 4,240.66
39+
Rs. 4,189.57
49+
Rs. 4,138.48
74+
Rs. 4,087.38
99+
Rs. 3,831.92
199+
Rs. 3,780.83
249+
Rs. 3,729.74
499+
Rs. 3,678.65
999+
Rs. 3,576.46
Description
Description

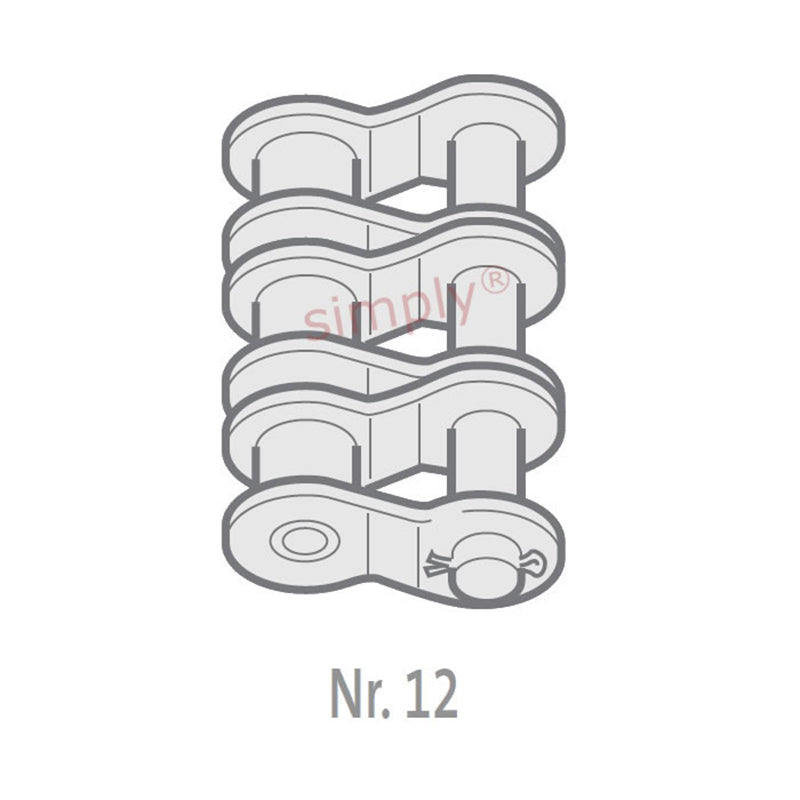

Branded OL / No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 120-3-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.1mm |
| Plate Width Inner max (E) | 4.7mm |
| Plate Width Outer max (F) | 4.7mm |
| Pin Diameter max (G) | 11.1mm |
| Pin Length max (H1) | 139.55mm |
| Connecting Link Extension max (J) | 8.84999999999999mm |
| ISO606 Tensile Strength min | 375000 N |
| Weight | 45.44kg/m |
