Renold SD 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Renold SD 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Regular price
Rs. 5,858.27
ex VAT
Regular price
Sale price
Rs. 5,858.27
ex VAT
In stock
Price Break
10+
Rs. 5,213.86
19+
Rs. 4,920.95
29+
Rs. 4,862.36
39+
Rs. 4,803.78
49+
Rs. 4,745.20
74+
Rs. 4,686.62
99+
Rs. 4,393.70
199+
Rs. 4,335.12
249+
Rs. 4,276.54
499+
Rs. 4,217.95
999+
Rs. 4,100.79
Couldn't load pickup availability
Description
Description

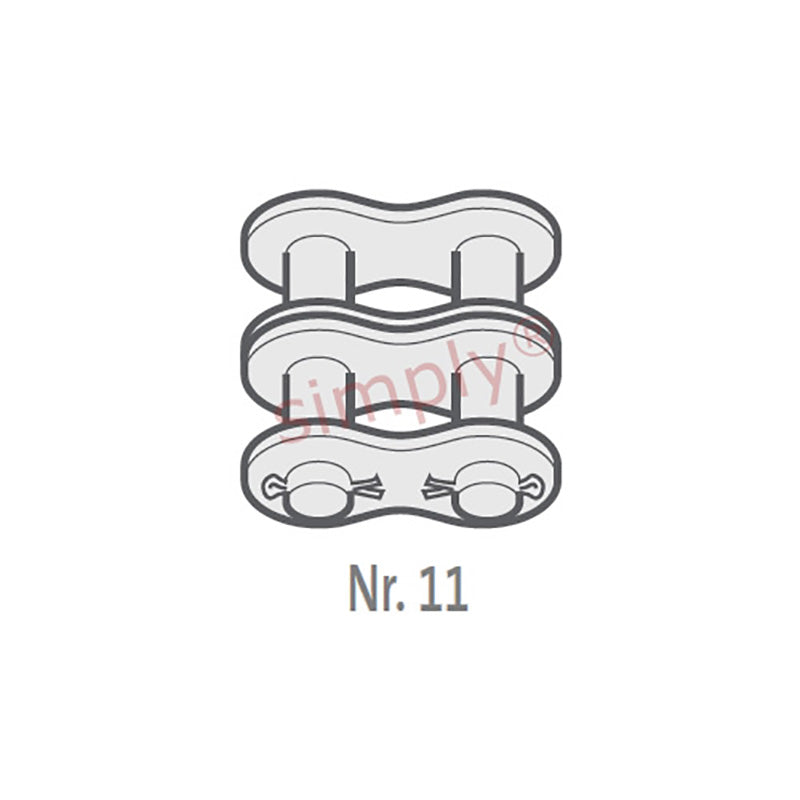

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.1mm |
| Plate Width Inner max (E) | 4.7mm |
| Plate Width Outer max (F) | 4.7mm |
| Pin Diameter max (G) | 11.1mm |
| Pin Length max (H2) | 95.4mm |
| Connecting Link Extension max (J) | 4.3mm |
| Transverse Pitch nom (K) | 45.44mm |
| ISO606 Tensile Strength min | 250000 N |
| Weight | 0.156kg/m |
