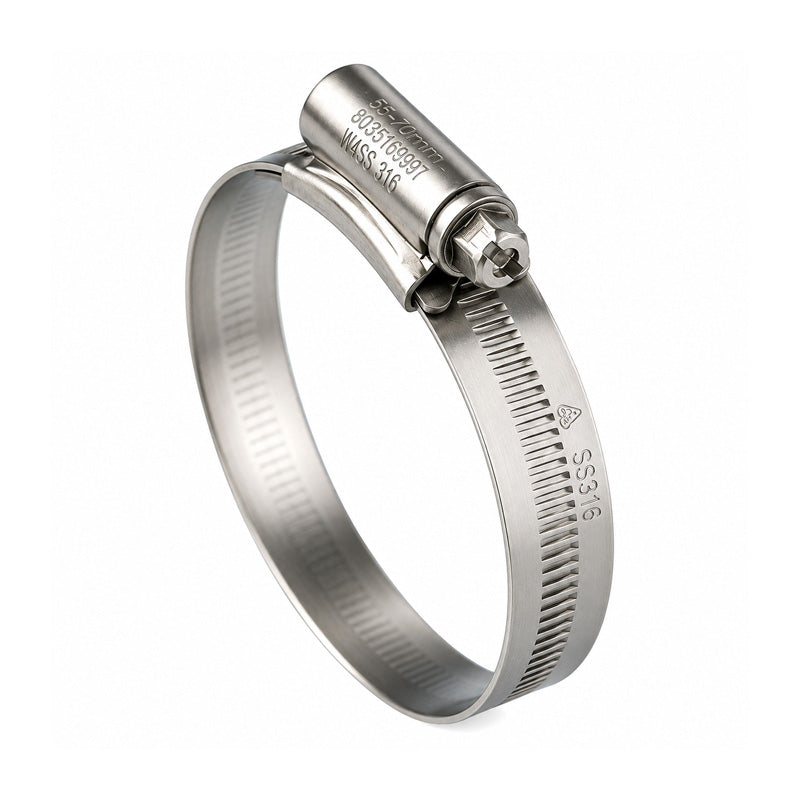

12.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 286mm-318mm Band Width 13mm
12.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 286mm-318mm Band Width 13mm
Regular price
Rs. 1,698.81
Regular price
Sale price
Rs. 1,698.81
Taxes included.
Low stock
Price Break
5+
Rs. 1,681.82
10+
Rs. 1,613.87
20+
Rs. 1,579.89
50+
Rs. 1,528.93
100+
Rs. 1,494.95
500+
Rs. 1,410.01
1000+
Rs. 1,189.17
Description
Description
316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 286mm
- Max Adjustment Range:
- 318mm
Technical
Technical
| BS No. | 318 |
|---|---|
| Adjustment Range | 286mm - 318mm |
| Adjustment Range | 11-1/4 - 12-1/2 inch |
| Band Width (+/- 0.1) | 13mm |
| Band Thickness (+/- 0.1) | 0.914mm |
| Recommended Torque | 5.9Nm |
| Maximum Torque | 7.9Nm |
| Maximum Pressure | 18 Psi |
