SKU: 1145-45CG-RHP

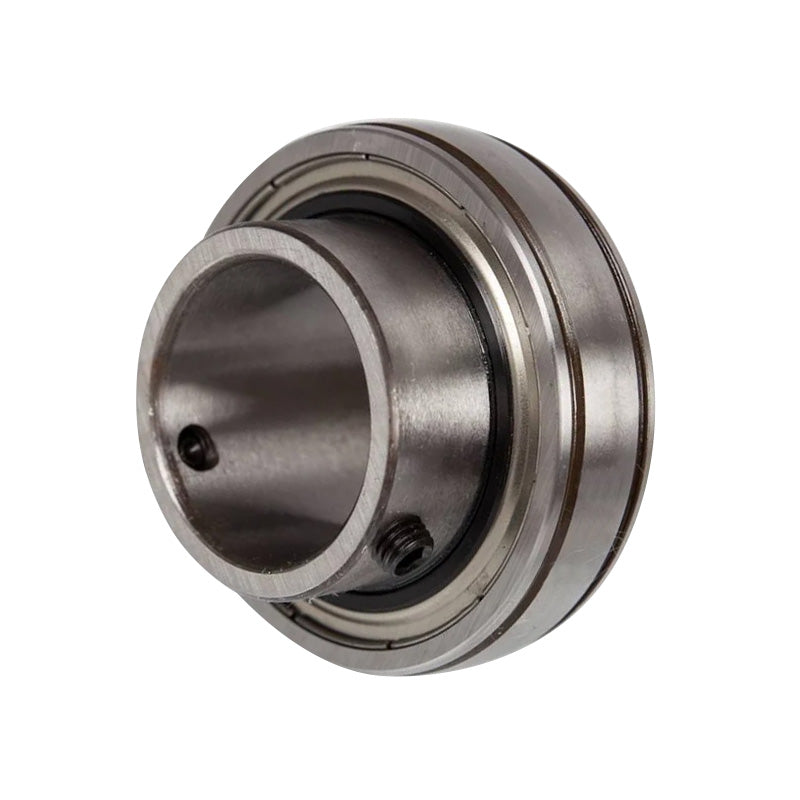

RHP 1145-45CG Full Width Snap Ring Grub Screw Bearing Insert 45mm Bore 85mm Outside Diameter
RHP 1145-45CG Full Width Snap Ring Grub Screw Bearing Insert 45mm Bore 85mm Outside Diameter
Regular price
Rs. 6,139.44
ex VAT
Regular price
Sale price
Rs. 6,139.44
ex VAT
In stock
Price Break
10+
Rs. 5,464.10
19+
Rs. 5,157.13
29+
Rs. 5,095.74
39+
Rs. 5,034.34
49+
Rs. 4,972.95
74+
Rs. 4,911.55
99+
Rs. 4,604.58
199+
Rs. 4,543.19
249+
Rs. 4,481.79
499+
Rs. 4,420.40
999+
Rs. 4,297.61
Couldn't load pickup availability
Description
Description
|
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Style:
- 1145
- Type:
- Parallel Outer
Technical
Technical
| Bore | 45mm |
|---|---|
| D | 85mm |
| D1 | 91.51mm |
| C | 27.78mm |
| C1 | 3.18mm |
| C2 | 6.52mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 57.3mm |
| f | 1.7mm |
| M | 7.95mm |
| r | 1mm |
| r1 | 1mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 1.05 kg |
