SKU: 1140-40CG-RHP

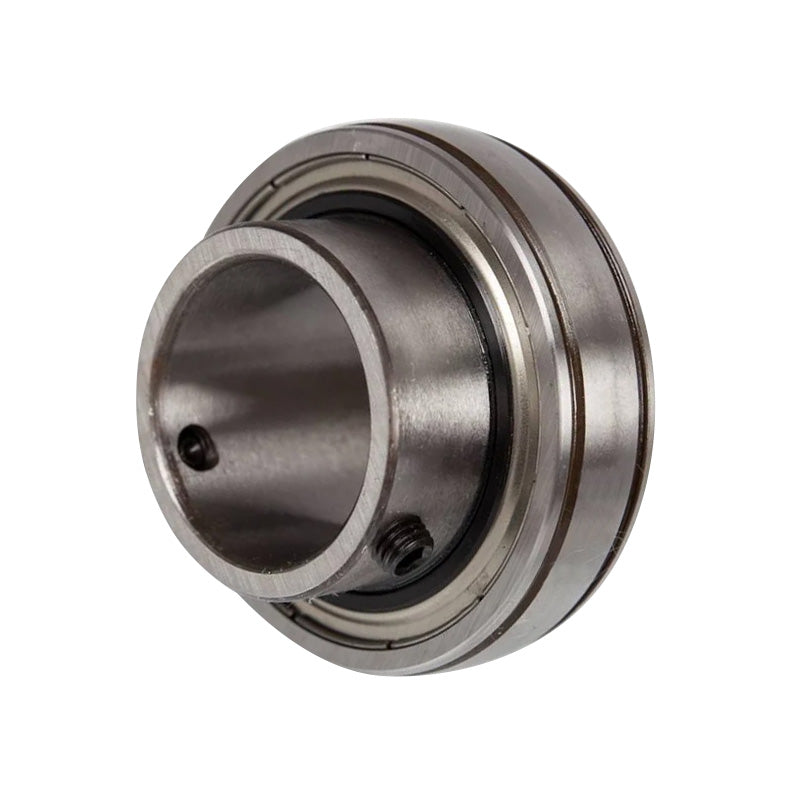

RHP 1140-40CG Full Width Snap Ring Grub Screw Bearing Insert 40mm Bore 80mm Outside Diameter
RHP 1140-40CG Full Width Snap Ring Grub Screw Bearing Insert 40mm Bore 80mm Outside Diameter
Regular price
Rs. 5,558.57
Regular price
Sale price
Rs. 5,558.57
Taxes included.
In stock
Price Break
10+
Rs. 4,947.13
19+
Rs. 4,669.20
29+
Rs. 4,613.61
39+
Rs. 4,558.03
49+
Rs. 4,502.44
74+
Rs. 4,446.86
99+
Rs. 4,168.93
199+
Rs. 4,113.34
249+
Rs. 4,057.76
499+
Rs. 4,002.17
999+
Rs. 3,891.00
Share this product
Description
Description
|
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Style:
- 1140
Technical
Technical
| Bore | 40mm |
|---|---|
| D | 80mm |
| D1 | 86.51mm |
| C | 27.78mm |
| C1 | 3.18mm |
| C2 | 6.22mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 52.7mm |
| f | 1.7mm |
| M | 7.95mm |
| r | 1mm |
| r1 | 1mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 0.91 kg |
