SKU: 1140-1.1/2CG-RHP

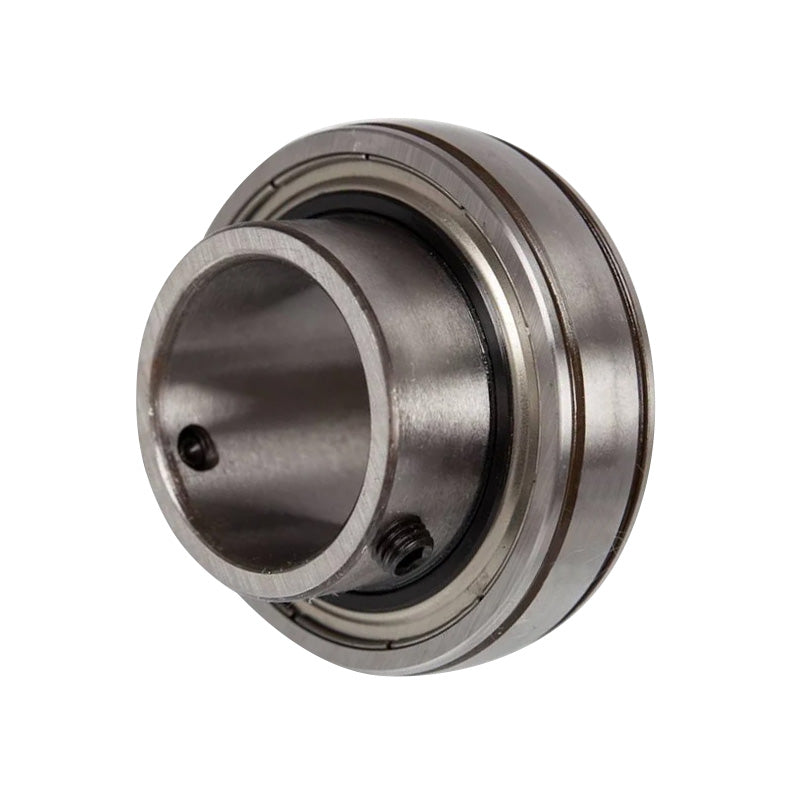

RHP 1140-1-1/2CG Full Width Snap Ring Grub Screw Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter
RHP 1140-1-1/2CG Full Width Snap Ring Grub Screw Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter
Regular price
Rs. 5,835.51
ex VAT
Regular price
Sale price
Rs. 5,835.51
ex VAT
In stock
Price Break
10+
Rs. 5,193.60
19+
Rs. 4,901.83
29+
Rs. 4,843.47
39+
Rs. 4,785.12
49+
Rs. 4,726.76
74+
Rs. 4,668.41
99+
Rs. 4,376.63
199+
Rs. 4,318.28
249+
Rs. 4,259.92
499+
Rs. 4,201.57
999+
Rs. 4,084.86
Couldn't load pickup availability
Description
Description
|
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Style:
- 1140
- Type:
- Parallel Outer
Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| D | 3.1496mm |
| D1 | 3.406mm |
| C | 1.094mm |
| C1 | 0.125mm |
| C2 | 0.245mm |
| B | 1.938mm |
| s | 0.752mm |
| d1 | 2.075mm |
| f | 0.67mm |
| M | 0.313mm |
| r | 0.039mm |
| r1 | 0.039mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 0.91 kg |
