SKU: 1135-1.1/4CG-RHP

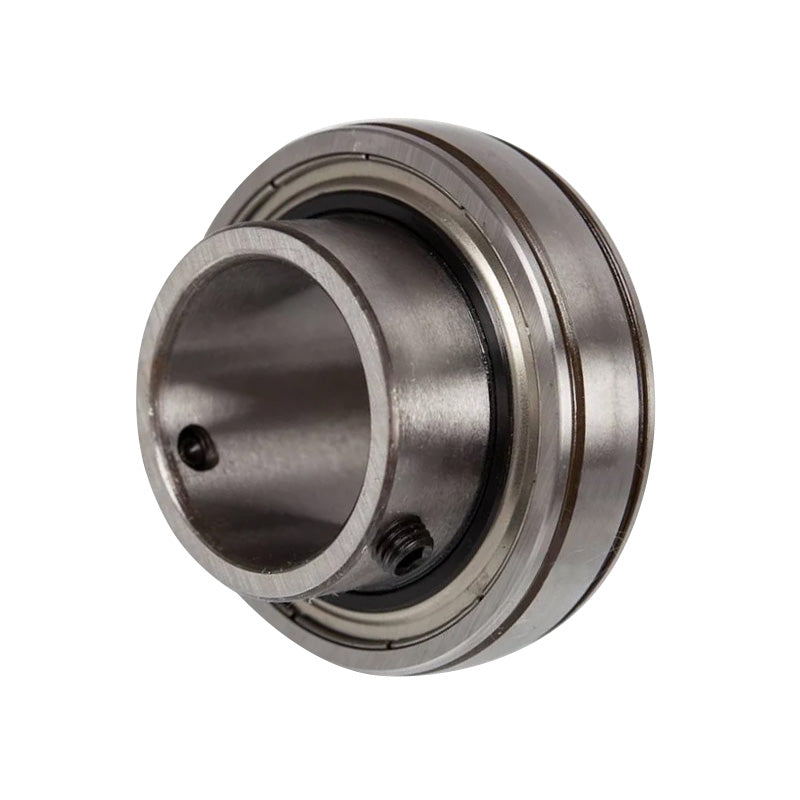

RHP 1135-1-1/4CG Full Width Snap Ring Grub Screw Bearing Insert 1-1/4 inch Bore 72mm Outside Diameter
RHP 1135-1-1/4CG Full Width Snap Ring Grub Screw Bearing Insert 1-1/4 inch Bore 72mm Outside Diameter
Regular price
Rs. 4,885.72
ex VAT
Regular price
Sale price
Rs. 4,885.72
ex VAT
In stock
Price Break
10+
Rs. 4,348.29
19+
Rs. 4,104.00
29+
Rs. 4,055.15
39+
Rs. 4,006.29
49+
Rs. 3,957.43
74+
Rs. 3,908.58
99+
Rs. 3,664.29
199+
Rs. 3,615.43
249+
Rs. 3,566.58
499+
Rs. 3,517.72
999+
Rs. 3,420.00
Couldn't load pickup availability
Description
Description
|
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
- Style:
- 1135
- Type:
- Parallel Outer
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| D | 2.8346mm |
| D1 | 3.091mm |
| C | 0.937mm |
| C1 | 0.125mm |
| C2 | 0.221mm |
| B | 1.688mm |
| s | 0.69mm |
| d1 | 1.838mm |
| f | 0.67mm |
| M | 0.289mm |
| r | 0.039mm |
| r1 | 0.039mm |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 0.61 kg |
