SKU: 10B-3-SYN-NO26-RENOLD

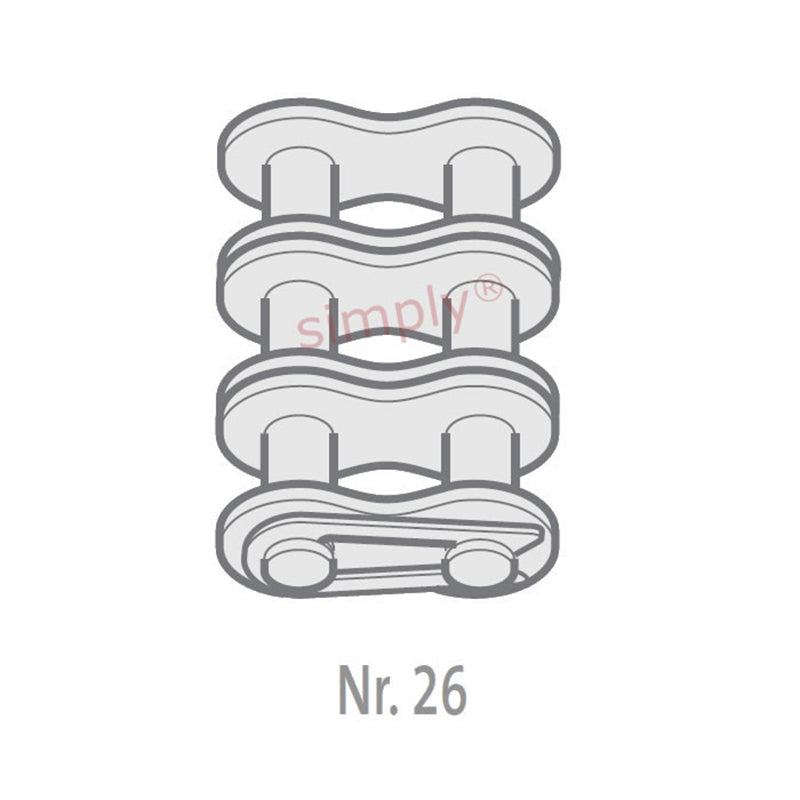

Renold Synergy 10B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Renold Synergy 10B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Regular price
Rs. 3,135.66
ex VAT
Regular price
Sale price
Rs. 3,135.66
ex VAT
In stock
Price Break
10+
Rs. 2,790.74
19+
Rs. 2,633.95
29+
Rs. 2,602.60
39+
Rs. 2,571.24
49+
Rs. 2,539.88
74+
Rs. 2,508.53
99+
Rs. 2,351.75
199+
Rs. 2,320.39
249+
Rs. 2,289.03
499+
Rs. 2,257.68
999+
Rs. 2,194.96
Couldn't load pickup availability
Description
Description
| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 52mm |
| Connecting Link Extension max (J) | 2.5mm |
| Transverse Pitch nom (K) | 16.59mm |
| ISO606 Tensile Strength min | 66700 N |
| Weight | 0.009kg/m |
