SKU: 10B-3-NO30-MB
Branded 10B-3-NO30 BS Triplex Chain Double Cranked Link 5/8 inch Pitch
Branded 10B-3-NO30 BS Triplex Chain Double Cranked Link 5/8 inch Pitch
Regular price
Rs. 1,076.64
Regular price
Sale price
Rs. 1,076.64
Taxes included.
Equivalent to: 10B-3-DOL
In stock
Price Break
10+
Rs. 958.21
19+
Rs. 904.38
29+
Rs. 893.61
39+
Rs. 882.84
49+
Rs. 872.08
74+
Rs. 861.31
99+
Rs. 807.48
199+
Rs. 796.71
249+
Rs. 785.95
499+
Rs. 775.18
999+
Rs. 753.65
Description
Description

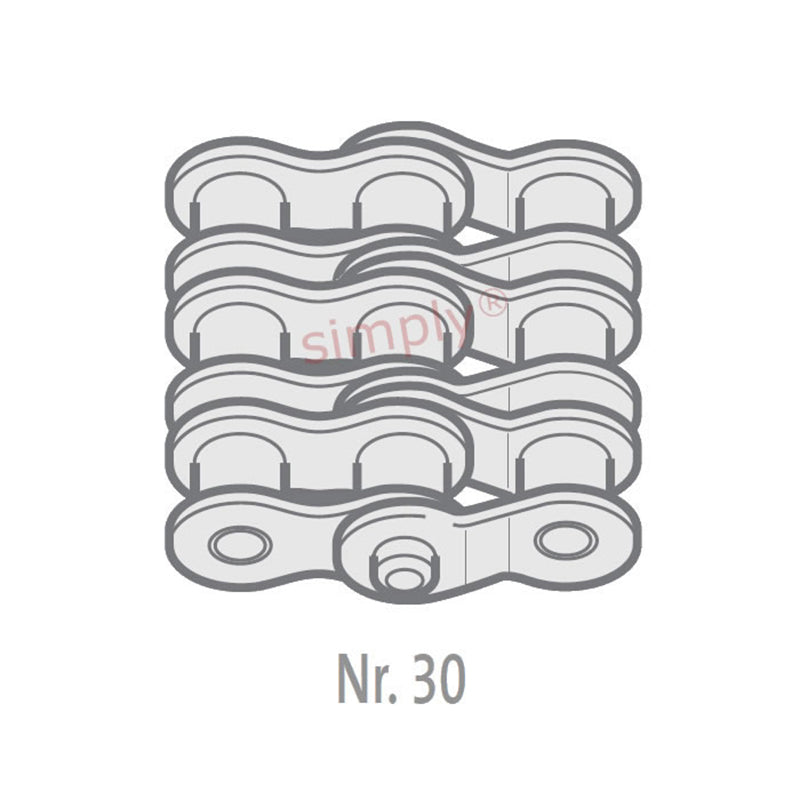

Branded DOL / No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Equivalent: 10B-3-DOL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.7mm |
| Plate Width Inner max (E) | 1.65mm |
| Plate Width Outer max (F) | 1.65mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H3) | 53.2mm |
| Connecting Link Extension max (J) | 4.2mm |
| ISO606 Tensile Strength min | 66650 N |
| Weight | 0.014kg/m |
